Vehicle Info NeededCOMP CAMSPART NUMBER: 249-31-640-5

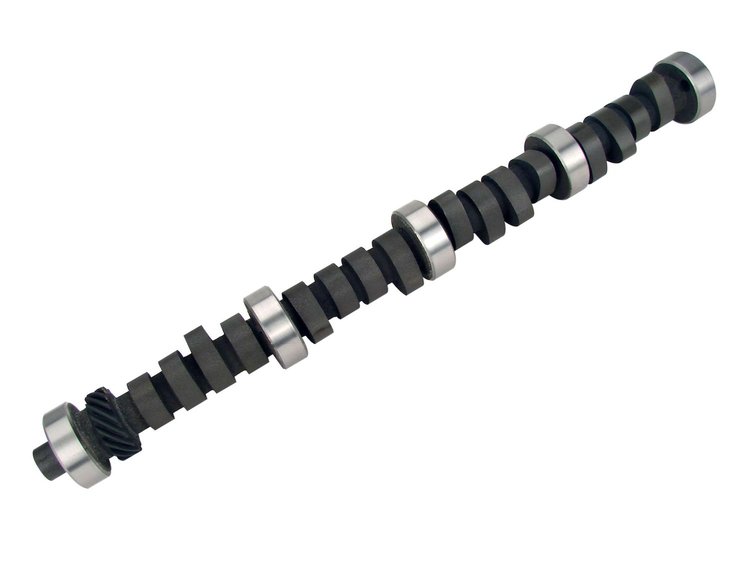

Drag Race Mechanical Flat Tappet Camshaft Ford 289-302 1963-95 Lift: .576"/.570"
$32495
Ships on 09/16/2026
Lowest Price GuaranteeFord 289-302 1963-95
- Drag Race Mechanical Flat Tappet Camshaft
- Lift: .576"/.570"
- Duration: 290°/304°
- Lobe Separation Angle: 106°
- RPM Range: 3000-7000
- Drag Race Xtreme RX Camshaft
- 1 Year Limited Warranty
Ford; SBF; Mustang; Windsor; Fairlane; Meteor; Mercury; GT; 22; 260; Sunbeam; Tiger; 289; 302; 351; 289; HiPo; K-Code; GT-350; Shelby; Boss; 5.0; 308; Windsor; Torino; Cougar; F-150; Squire; Thunderbird; LTD; Galaxie; Grand Marquis
Good for 4000+ stall in medium to heavy cars, 10.5:1 compression.
Ford 289-302 1963-95
Emissions Note:
This part is only legal for sale and use on Uncontrolled (Non-Emissions Controlled) Vehicles or on vehicles used solely for the purposes of closed competition racing.
CLICK THIS LINK FOR IMPORTANT CARB & EPA EMISSIONS INFORMATION ABOUT THIS PART
Part TypeCamshaft
BrandCOMP CAMS
Package Height2.8
Package Width3.0
Package Length24.3
Weight9.4 PG
Part CategoryPerformance Parts
Exh. Duration @ .050 In. (Deg)266
Cam StyleMechanical flat tappet
Grind NumberFS 290B-6
Exh. Duration Advertised (Deg)304-1
Engine Make/SizeFord 289-302
Intake Valve Lift With Factory Rocker Arm Ratio (I0.576
Int. Duration @ .050 In. (Deg)255
Basic Operating Rpm Range3,000-7,000
Intake Valve Lash0.026 in (0.66 mm)
Intake Valve Lift0.576 in (14.63 mm)
Computer-Controlled CompatibleNo
Int. Duration Advertised (Deg)290-1
Lobe Separation (Deg)106
Rpm Range3000-7000
Advertised Duration290 int./304 exh.
Exhaust Valve Lift With Factory Rocker Arm Ratio (0.57
UsageStrip
Valve Lift With Factory Rocker Arm Ratio0.576 int./0.570 exh.
QuantitySold individually
Exhaust Valve Lash0.028 in (0.711 mm)
Exhaust Valve Lift0.57 in (14.478 mm)
Advertised Intake Duration290
Intake Duration At 050 Inch Lift255
Exhaust Duration At 050 Inch Lift266
Advertised Exhaust Duration304
Lifter TypeMechanical Flat Tappet
Part FitmentSemi Universal
Duration At 050 Inch Lift255 int./266 exh.
Valve Springs RequiredYes
Vendor Part Number31-640-5
Package Qty1
Package TypeEA
