Vehicle Info NeededCOMP CAMSPART NUMBER: 249-31-641-5

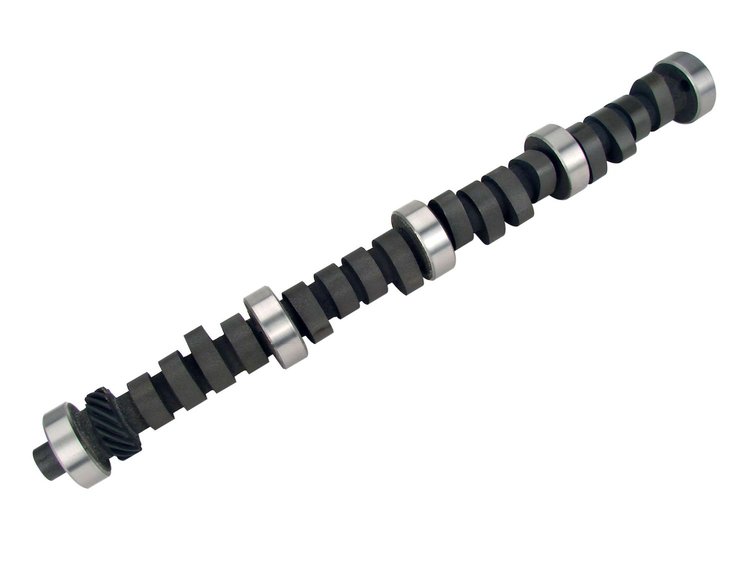

Drag Race Mechanical Flat Tappet Camshaft Ford 289-302 1963-95 Lift: .600"/.593"
$32295
Ships on 09/16/2026
Lowest Price GuaranteeFord 289-302 1963-95
- Drag Race Mechanical Flat Tappet Camshaft
- Lift: .600"/.593"
- Duration: 300°/314°
- Lobe Separation Angle: 106°
- RPM Range: 3000-7000
- Drag Race Xtreme RX Camshaft
- 1 Year Limited Warranty
Ford; SBF; Mustang; Windsor; Fairlane; Meteor; Mercury; GT; 22; 260; Sunbeam; Tiger; 289; 302; 351; 289; HiPo; K-Code; GT-350; Shelby; Boss; 5.0; 308; Windsor; Torino; Cougar; F-150; Squire; Thunderbird; LTD; Galaxie; Grand Marquis
Light car with 4 speed or 4500+ stall, 11:1 compression.
Ford 289-302 1963-95
Emissions Note:
This part is only legal for sale and use on Uncontrolled (Non-Emissions Controlled) Vehicles or on vehicles used solely for the purposes of closed competition racing.
CLICK THIS LINK FOR IMPORTANT CARB & EPA EMISSIONS INFORMATION ABOUT THIS PART
Part TypeCamshaft
BrandCOMP CAMS
Package Height2.75
Package Width2.87
Package Length24.5
Weight9.3 PG
Part CategoryPerformance Parts
Exh. Duration @ .050 In. (Deg)276
Cam StyleMechanical flat tappet
Grind Number300B-6
Exh. Duration Advertised (Deg)314-1
Engine Make/SizeFord 289-302
Intake Valve Lift With Factory Rocker Arm Ratio (I0.6
Int. Duration @ .050 In. (Deg)265
Basic Operating Rpm Range3,000-7,000
Intake Valve Lash0.022 in (0.559 mm)
Intake Valve Lift0.6 in (15.24 mm)
Computer-Controlled CompatibleNo
Int. Duration Advertised (Deg)300-1
Lobe Separation (Deg)106
Rpm Range3000-7000
Advertised Duration300 int./314 exh.
Exhaust Valve Lift With Factory Rocker Arm Ratio (0.593
UsageStrip
Valve Lift With Factory Rocker Arm Ratio0.600 int./0.593 exh.
QuantitySold individually
Exhaust Valve Lash0.022 in (0.559 mm)
Exhaust Valve Lift0.593 in (15.062 mm)
Advertised Intake Duration300
Intake Duration At 050 Inch Lift265
Exhaust Duration At 050 Inch Lift276
Advertised Exhaust Duration314
Lifter TypeMechanical Flat Tappet
Part FitmentSemi Universal
Duration At 050 Inch Lift265 int./276 exh.
Valve Springs RequiredYes
Vendor Part Number31-641-5
Package Qty1
Package TypeEA
