Vehicle Info NeededCOMP CAMSPART NUMBER: 249-32-234-4

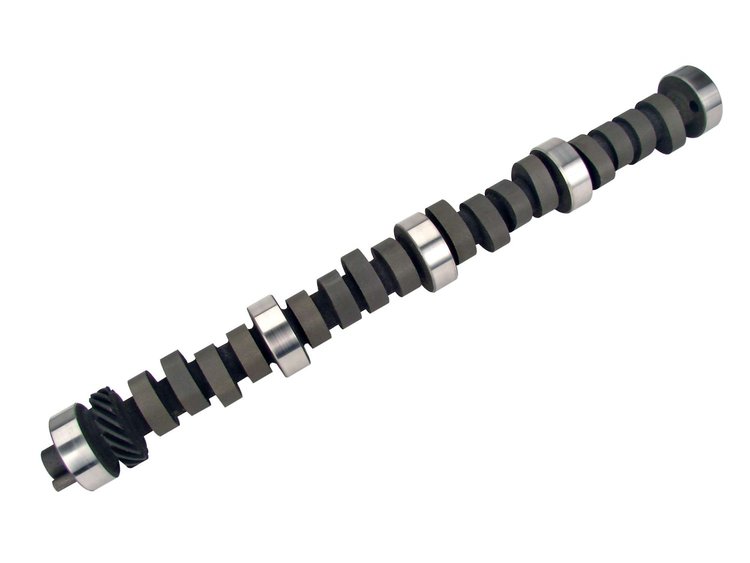

Magnum 292H Hydraulic Flat Tappet Camshaft Lift .560"/.560" Duration 292°/292° RPM Range 2500-6500
$30995
Ships on 09/15/2026
Lowest Price GuaranteeFord 351C, 351M-400M 1970-82
- Magnum 292H Hydraulic Flat Tappet Camshaft
Lift .560"/.560"
Duration 292°/292°
RPM Range 2500-6500
Hydraulic-Street / Strip use with 3000+ stall, 10:1 compression, low gears. Racy idle.
Ford, 351, 351 Cleveland, 400, 351 Modified, 400 Modified, Ford F100, Mach 1, Mustang
Street/strip use with 3000+ stall, 10:1 compression, low gears. Racy idle.
Emissions Note:
This part is only legal for sale and use on Uncontrolled (Non-Emissions Controlled) Vehicles or on vehicles used solely for the purposes of closed competition racing.
CLICK THIS LINK FOR IMPORTANT CARB & EPA EMISSIONS INFORMATION ABOUT THIS PART
Part TypeCamshaft
BrandCOMP CAMS
Package Height2.9
Package Width2.9
Package Length24.3
Weight10.05 PG
Part CategoryPerformance Parts
Exh. Duration @ .050 In. (Deg)244
Cam StyleHydraulic flat tappet
Grind NumberFC 292H-10
Exh. Duration Advertised (Deg)292
Engine Make/SizeFord 351M-400
Intake Valve Lift With Factory Rocker Arm Ratio (I0.56
Int. Duration @ .050 In. (Deg)244
Basic Operating Rpm Range2,500-6,500
Intake Valve Lift0.56 in (14.224 mm)
Computer-Controlled CompatibleNo
Int. Duration Advertised (Deg)292
Lobe Separation (Deg)110
Rpm Range2500-6500
Advertised Duration292 int./292 exh.
Exhaust Valve Lift With Factory Rocker Arm Ratio (0.56
UsageStreet/Strip
Valve Lift With Factory Rocker Arm Ratio0.560 int./0.560 exh.
QuantitySold individually
Exhaust Valve Lift0.56 in (14.224 mm)
Advertised Intake Duration292
Intake Duration At 050 Inch Lift244
Exhaust Duration At 050 Inch Lift244
Advertised Exhaust Duration292
Lifter TypeHydraulic Flat Tappet
Part FitmentSemi Universal
Duration At 050 Inch Lift244 int./244 exh.
Valve Springs RequiredYes
Vendor Part Number32-234-4
Package Qty1
Package TypeEA
