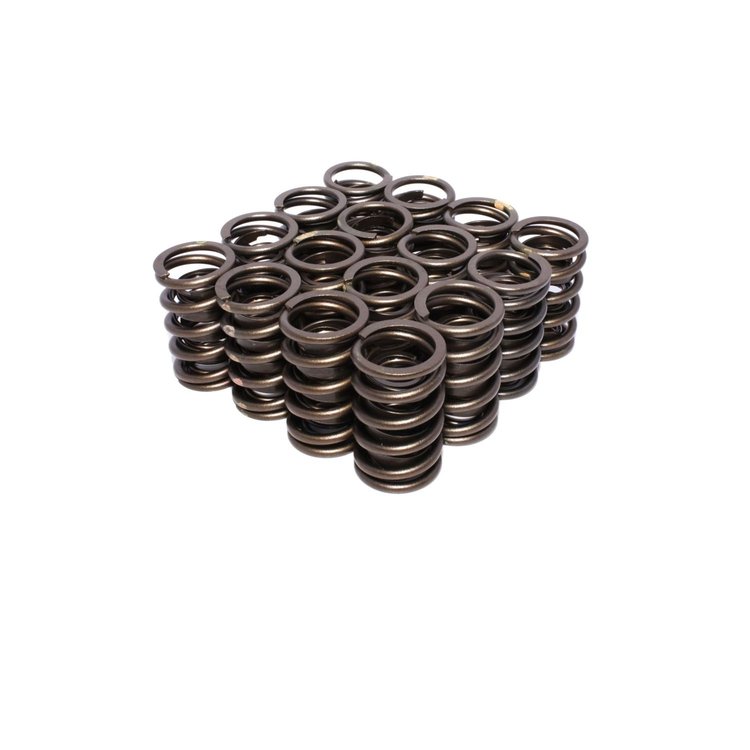

Vehicle Info NeededCOMP CAMSPART NUMBER: 249-924-16
Dual Valve Springs Outer Spring O.D.: 1.509 in.
$16295
Ships on Oct 21, 2026
Lowest Price GuaranteeCurrently Unavailable
This product is currently not available. Please call customer service for assistance at 1-800-345-4545.
1.509 in. Outside Diameter
- Dual Valve Springs
- Outer Spring O.D.: 1.509 in.
- Outer Spring I.D.: 1.125 in.
- Inner Spring I.D.: 0.697 in.
- Seat Load: 112lbs
- Coil Bind: 1.175 in.
- Spring Rate: 347lbs/in.
- With damper
- Set of 16
- Dual Valve Spring
- Coiled On the Most Advanced CNC Machines
Valve Springs; Dual Valve Springs; Single Valve Springs; Beehive Springs; Conical Springs; Valve Lift; Max Lift; Spring Kit
Engine Valve Spring Kit
Comp Cams Dual Valve Springs are manufactured from Super Clean wire and undergo extensive quality control that delivers a valve spring assembly with superior strength, durability and valve train stability, suitable for any application. The dual spring design creates a stronger valve spring that can easily handle increased lift found in extreme stress applications. Comp Cams Dual Valve Springs are a top choice for today’s engine builders and racers.
Features:
- Superior strength, durability and valve train stability
- Easily handles increased lift
- Suitable for street or race applications
Part TypeEngine Valve Spring Kit
Product LineComp Cams Dual Valve Springs
BrandCOMP CAMS
Package Height2.8
Package Width3.7
Package Length13.5
Weight5.15 PG
Part CategoryPerformance Parts
CoatedNo
Coil Bind Height1.2 in (30.48 mm)
Damper Spring IncludedYes
Spring Rate347 lbs./in.
PositionN/A
Open Height1.28 in (32.5 mm)
Open Pressure (Lbs.)315
Installed Pressure (Lbs.)125
QuantitySold as a set of 16
Installed Height1.88 in (47.752 mm)
Inside Diameter Of Inner Spring0.697 in (17.704 mm)
Valve Spring StyleStandard
Outside Diameter Of Outer Spring1.509 in (38.3 mm)
Inside Diameter Of Outer Spring1.125 in (28.575 mm)
Inside Diameter0.697 in (17.704 mm)
Spring TypeDouble
Spring Rate (Lbs./In.)317
Part FitmentSemi Universal
Outside Diameter1.509 in (38.3 mm)
Number Of Springs Per ValveDual
Camshaft TypeHydraulic, Mechanical
Vendor Part Number924-16
Package Qty1
Package TypeEA
