Vehicle Info NeededCOMP CAMSPART NUMBER: 249-32-644-5

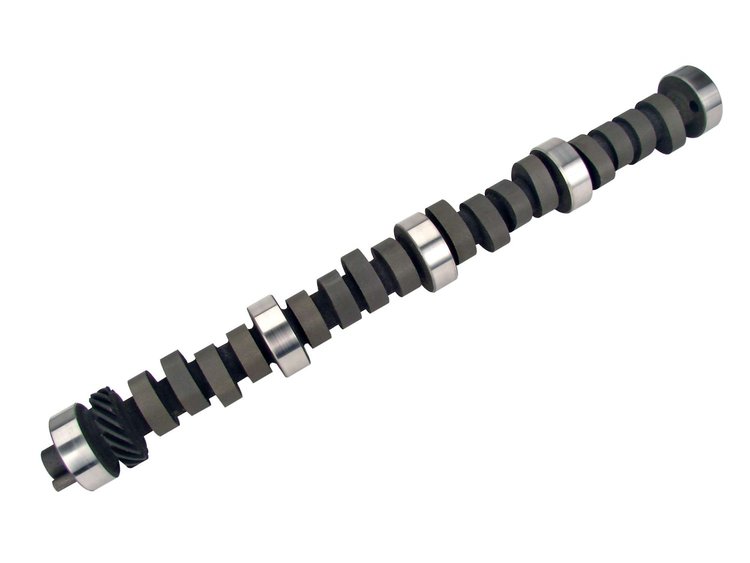

Drag Race Mechanical Flat Tappet Camshaft Ford 351C, 351M-400M 1970-82 Lift: .589"/.615"
$32595
Ships on 09/15/2026
Lowest Price GuaranteeFord 351C, 351M-400M 1970-82
- Drag Race Mechanical Flat Tappet Camshaft
- Lift: .589"/.615"
- Duration: 294°/304°
- Lobe Separation Angle: 106°
- RPM Range: 3800-6800
- Drag Race Xtreme RX Camshaft
- 1 Year Limited Warranty
Ford, 351, 351 Cleveland, 400, 351 Modified, 400 Modified, Ford F100, Mach 1, Mustang
Excellent torque for heavy cars, 3500+ stall or 4 speed with 10.5:1 compression.
Ford 351C, 351M-400M 1970-82
Emissions Note:
This part is only legal for sale and use on Uncontrolled (Non-Emissions Controlled) Vehicles or on vehicles used solely for the purposes of closed competition racing.
CLICK THIS LINK FOR IMPORTANT CARB & EPA EMISSIONS INFORMATION ABOUT THIS PART
Part TypeCamshaft
BrandCOMP CAMS
Package Height2.75
Package Width2.87
Package Length24.5
Weight9.8 PG
Part CategoryPerformance Parts
Exh. Duration @ .050 In. (Deg)266
Cam StyleMechanical flat tappet
Grind Number294B-6
Exh. Duration Advertised (Deg)304-1
Engine Make/SizeFord 351M-400
Intake Valve Lift With Factory Rocker Arm Ratio (I0.589
Int. Duration @ .050 In. (Deg)256
Basic Operating Rpm Range3,800-6,800
Intake Valve Lash0.028 in (0.711 mm)
Intake Valve Lift0.589 in (14.961 mm)
Computer-Controlled CompatibleNo
Int. Duration Advertised (Deg)294-1
Lobe Separation (Deg)106
Rpm Range3800-6800
Advertised Duration294 int./304 exh.
Exhaust Valve Lift With Factory Rocker Arm Ratio (0.615
UsageStrip
Valve Lift With Factory Rocker Arm Ratio0.589 int./0.615 exh.
QuantitySold individually
Exhaust Valve Lash0.03 in (0.762 mm)
Exhaust Valve Lift0.615 in (15.621 mm)
Advertised Intake Duration294
Intake Duration At 050 Inch Lift256
Exhaust Duration At 050 Inch Lift266
Advertised Exhaust Duration304
Lifter TypeMechanical Flat Tappet
Part FitmentSemi Universal
Duration At 050 Inch Lift256 int./266 exh.
Valve Springs RequiredYes
Vendor Part Number32-644-5
Package Qty1
Package TypeEA
