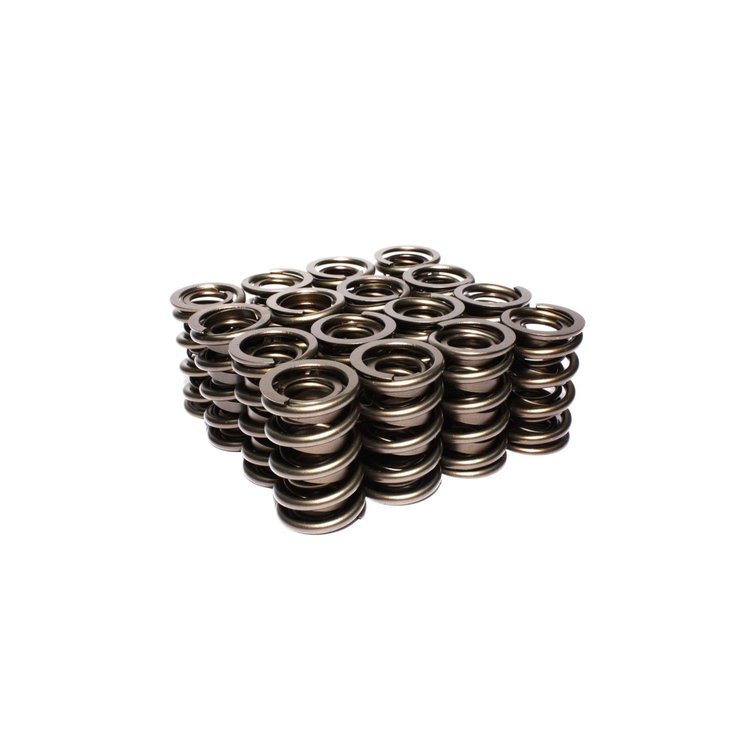

Vehicle Info NeededCOMP CAMSPART NUMBER: 249-928-16
Dual Valve Springs Outer Spring O.D.: 1.550 in.
$20395
Ships on Sep 04, 2026
Lowest Price Guarantee1.550 in. Outside Diameter
- Dual Valve Springs
- Outer Spring O.D.: 1.550 in.
- Outer Spring I.D.: 1.150 in.
- Inner Spring I.D.: 0.795 in.
- Seat Load: 171lbs
- Coil Bind: 1.160 in.
- Spring Rate: 354lbs/in.
- With damper
- Set of 16
- Dual Valve Spring
- Coiled On the Most Advanced CNC Machines
- 1 Year Limited Warranty
Valve Springs; Dual Valve Springs; Single Valve Springs; Beehive Springs; Conical Springs; Valve Lift; Max Lift; Spring Kit
Engine Valve Spring Kit
Part TypeValve Spring Kit
BrandCOMP CAMS
Package Height2.8
Package Width3.8
Package Length13.6
Weight5.75 PG
Part CategoryPerformance Parts
CoatedNo
Coil Bind Height1.16 in (29.464 mm)
Damper Spring IncludedYes
Spring Rate354 lbs./in.
PositionN/A
Open Height1.25 in (31.8 mm)
Open Pressure (Lbs.)371
Installed Pressure (Lbs.)160
QuantitySold as a set of 16
Installed Height1.85 in (46.99 mm)
Inside Diameter Of Inner Spring0.795 in (20.193 mm)
Valve Spring StyleStandard
Outside Diameter Of Outer Spring1.55 in (39.4 mm)
Inside Diameter Of Outer Spring1.15 in (29.21 mm)
Inside Diameter0.795 in (20.193 mm)
Spring TypeDouble
Spring Rate (Lbs./In.)352
Part FitmentSemi Universal
Outside Diameter1.55 in (39.4 mm)
Number Of Springs Per ValveDual
Camshaft TypeHydraulic
Vendor Part Number928-16
Package Qty1
Package TypeEA
