Product Discontinued
COMP CAMSPART NUMBER: 249-32-651-8

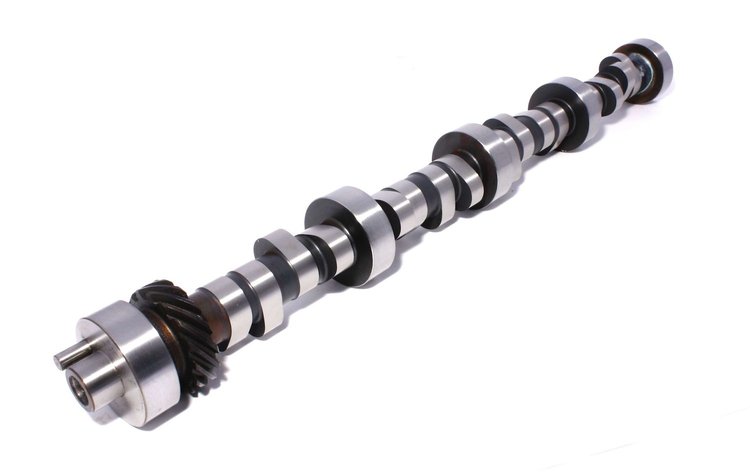

Magnum Hydraulic Roller Camshaft Ford 351C, 351M-400M 1970-82 Retro Fit Lift: .612"/.612"
Currently Unavailable
This product is no longer available. Please call customer service for assistance at 1-800-345-4545.
Ford 351C, 351M-400M 1970-82 Retro Fit
- Magnum Hydraulic Roller Camshaft
- Lift: .612"/.612"
- Duration: 304°/304°
- Lobe Separation Angle: 110°
- RPM Range: 3000-6500
Hydraulic Roller-Street / Strip only. 4 speed or 3000 stall and 4.10 or lower gear. Higher compression, aftermarket intake and headers.Ford, 351, 351 Cleveland, 400, 351 Modified, 400 Modified, Ford F100, Mach 1, Mustang
Street/strip only. 4 speed or 3000+ stall and 4.10 or lower gear. Higher compression, aftermarket intake and headers.
Ford 351C, 351M-400M 1970-82 Retro Fit
Emissions Note:
This part is only legal for sale and use on Uncontrolled (Non-Emissions Controlled) Vehicles or on vehicles used solely for the purposes of closed competition racing.
CLICK THIS LINK FOR IMPORTANT CARB & EPA EMISSIONS INFORMATION ABOUT THIS PART
Part TypeCamshaft
BrandCOMP CAMS
Package Height2.8
Package Width3.0
Package Length24.2
Weight8.5 PG
Part CategoryPerformance Parts
Exh. Duration @ .050 In. (Deg)244
Cam StyleHydraulic roller tappet
Grind Number304HR
Exh. Duration Advertised (Deg)304
Engine Make/SizeFord 351M-400
Intake Valve Lift With Factory Rocker Arm Ratio (I0.612
Int. Duration @ .050 In. (Deg)244
Basic Operating Rpm Range2,500-6,000
Intake Valve Lift0.612 in (15.545 mm)
Computer-Controlled CompatibleNo
Int. Duration Advertised (Deg)304
Lobe Separation (Deg)110
Rpm Range3000-6500
Advertised Duration304 int./304 exh.
Exhaust Valve Lift With Factory Rocker Arm Ratio (0.612
UsageStreet/Strip
Valve Lift With Factory Rocker Arm Ratio0.612 int./0.612 exh.
QuantitySold individually
Exhaust Valve Lift0.612 in (15.545 mm)
Advertised Intake Duration304
Intake Duration At 050 Inch Lift244
Exhaust Duration At 050 Inch Lift244
Advertised Exhaust Duration304
Lifter TypeHydraulic Roller
Part FitmentSemi Universal
Duration At 050 Inch Lift244 int./244 exh.
Valve Springs RequiredYes
Vendor Part Number32-651-8
Package Qty1
Package TypeEA
