Vehicle Info NeededCOMP CAMSPART NUMBER: 249-34-235-4

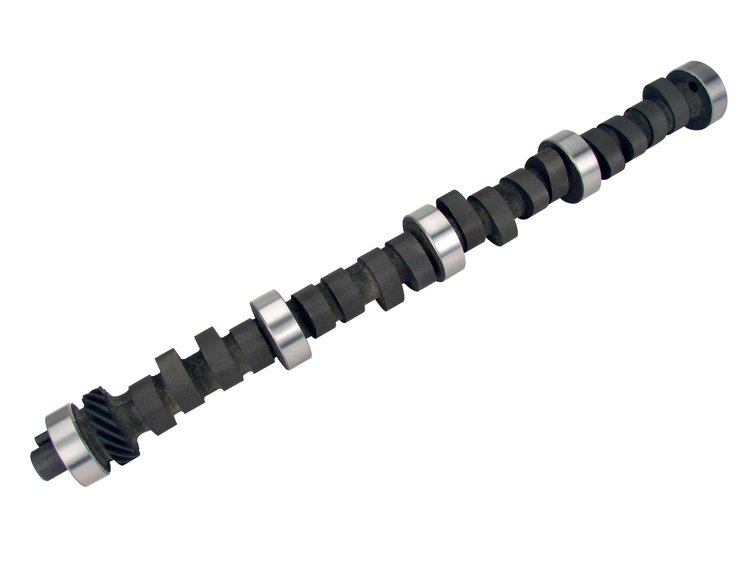

'Xtreme 4x4' Hydraulic Flat Tappet Camshaft
$30995
Ships on 09/08/2026
Lowest Price GuaranteeFord 429, 460 c.i. 8 CYL. 1968-1994
- Xtreme 4x4 X4262H Hydraulic Flat Tappet Camshaft
Lift .514"/.524"
Duration 262°/270°
Lobe Separation Angle: 111°
RPM Range 1400-5600
Hydraulic-Good mid-range, largest for stock converter, heavy towing, noticeable idle.
| Operating Range: | 1400-5600 RPM |
| Duration Advertised: | 262° Intake / 270° Exhaust |
| Duration @ .050' Lift: | 218° Intake / 226° Exhaust |
| Valve Lift w/1.7 Rockers: | .514' Intake / .524' Exhaust |
| Lobe Separation Angle: | 111° |
Ford; 429; 460; BBF; Big Block Ford; 385; Cobra Jet; 429 Cobra Jet; Interceptor; Lima; F100; F150; F250; Super Duty; E150; E250
Good mid-range, largest for stock converter, heavy towing, noticeable idle. Good for daily driver.
Emissions Note:
This part is only legal for sale and use on Uncontrolled (Non-Emissions Controlled) Vehicles or on vehicles used solely for the purposes of closed competition racing.
CLICK THIS LINK FOR IMPORTANT CARB & EPA EMISSIONS INFORMATION ABOUT THIS PART
Part TypeCamshaft
BrandCOMP CAMS
Package Height2.6
Package Width2.8
Package Length24.2
Weight11.65 PG
Part CategoryPerformance Parts
Exh. Duration @ .050 In. (Deg)226
Cam StyleHydraulic flat tappet
Grind NumberFF X4 262H-11
Exh. Duration Advertised (Deg)270
Engine Make/SizeFord 429-460
Intake Valve Lift With Factory Rocker Arm Ratio (I0.514
Int. Duration @ .050 In. (Deg)218
Basic Operating Rpm Range1,400-5,600
Intake Valve Lift0.505 in (12.827 mm)
Computer-Controlled CompatibleNo
Int. Duration Advertised (Deg)262
Lobe Separation (Deg)111
Rpm Range1400-5600
Advertised Duration262 int./270 exh.
Exhaust Valve Lift With Factory Rocker Arm Ratio (0.524
UsageStreet/Performance
Valve Lift With Factory Rocker Arm Ratio0.514 int./0.524 exh.
QuantitySold individually
Exhaust Valve Lift0.515 in (13.081 mm)
Advertised Intake Duration262
Intake Duration At 050 Inch Lift218
Exhaust Duration At 050 Inch Lift226
Advertised Exhaust Duration270
Lifter TypeHydraulic Flat Tappet
Part FitmentSemi Universal
Duration At 050 Inch Lift218 int./226 exh.
Valve Springs RequiredYes
Vendor Part Number34-235-4
Package Qty1
Package TypeEA
