Vehicle Info NeededCOMP CAMSPART NUMBER: 249-34-236-4

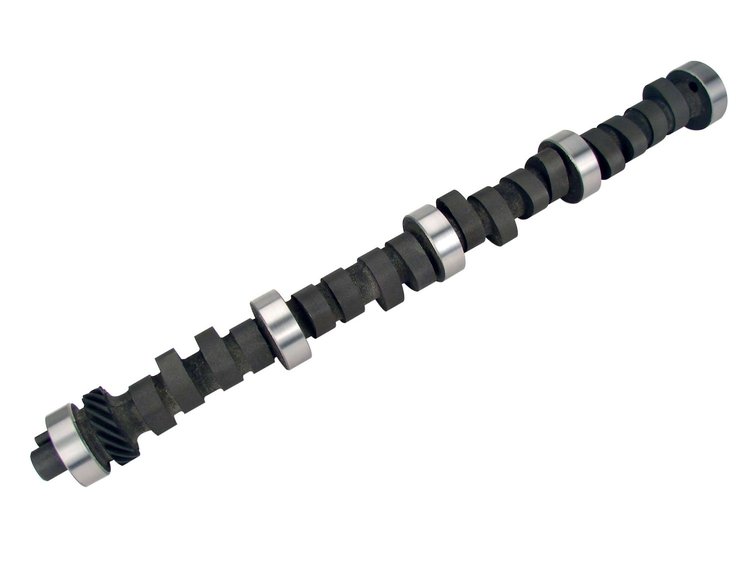

Comp Cams Xtreme Marine Hydraulic Flat Tappet Camshafts
$30995
1 left in stock
Ships Today
Lowest Price GuaranteeFord 429, 460ci 1968-94
- Xtreme Marine Hydraulic Flat Tappet Camshaft
- Xtreme Marine Camshaft
- 1 Year Limited Warranty
Ford; 429; 460; BBF; Big Block Ford; 385; Cobra Jet; 429 Cobra Jet; Interceptor; Lima; F100; F150; F250; Super Duty; E150; E250
Strong mid-range with good throttle response, great for small blower, noticeable idle.
Ford 429, 460ci 1968-94
Lift: .554"/.557"
Duration: 270°/286°
Lobe Separation Angle: 112°
RPM Range: 1600-5800
Emissions Note:
This part is only legal for sale and use on Uncontrolled (Non-Emissions Controlled) Vehicles or on vehicles used solely for the purposes of closed competition racing.
CLICK THIS LINK FOR IMPORTANT CARB & EPA EMISSIONS INFORMATION ABOUT THIS PART
Part TypeCamshaft
BrandCOMP CAMS
Package Height2.75
Package Width2.87
Package Length24.5
Weight11.65 PG
Part CategoryPerformance Parts
Exh. Duration @ .050 In. (Deg)236
Cam StyleHydraulic flat tappet
Grind NumberFF XM 270H-12
Exh. Duration Advertised (Deg)286
Engine Make/SizeFord 429-460
Intake Valve Lift With Factory Rocker Arm Ratio (I0.554
Int. Duration @ .050 In. (Deg)226
Basic Operating Rpm Range1,600-5,800
Intake Valve Lift0.544 in (13.818 mm)
Computer-Controlled CompatibleNo
Int. Duration Advertised (Deg)270
Lobe Separation (Deg)112
Rpm Range1600-5800
Advertised Duration270 int./286 exh.
Exhaust Valve Lift With Factory Rocker Arm Ratio (0.557
UsageMarine
Valve Lift With Factory Rocker Arm Ratio0.554 int./0.557 exh.
QuantitySold individually
Exhaust Valve Lift0.547 in (13.894 mm)
Advertised Intake Duration270
Intake Duration At 050 Inch Lift226
Exhaust Duration At 050 Inch Lift236
Advertised Exhaust Duration286
Lifter TypeHydraulic Flat Tappet
Duration At 050 Inch Lift226 int./236 exh.
Valve Springs RequiredYes
Vendor Part Number34-236-4
Package Qty1
Package TypeEA
