Vehicle Info NeededCOMP CAMSPART NUMBER: 249-34-241-5

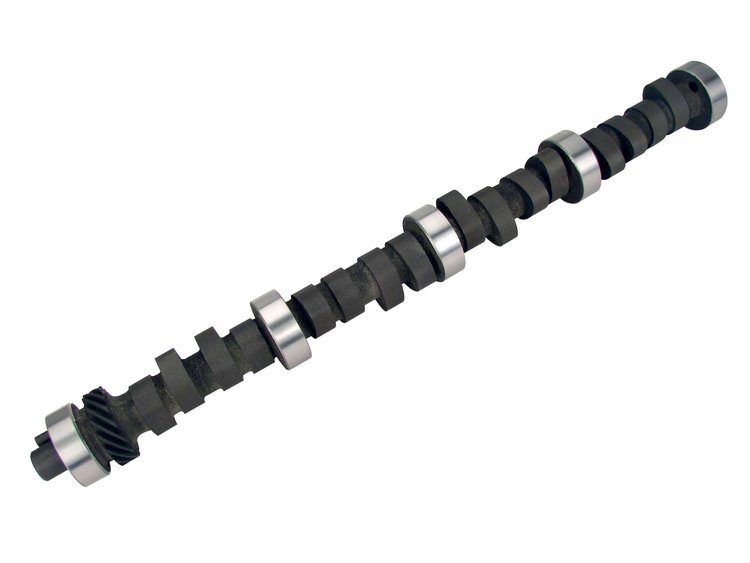

Comp Cams Xtreme Marine Hydraulic Flat Tappet Camshafts
$32595
Ships Tomorrow
Lowest Price GuaranteeFord 429, 460ci 1968-94
- Xtreme Marine Hydraulic Flat Tappet Camshaft
Ford 429, 460ci 1968-94
Lift: .574"/.576"
Duration: 278°/292°
Lobe Separation Angle: 112°
RPM Range: 2000-6200
Good for jet boats with A impeller. Needs good manifolds, likes headers.
Ford; 429; 460; BBF; Big Block Ford; 385; Cobra Jet; 429 Cobra Jet; Interceptor; Lima; F100; F150; F250; Super Duty; E150; E250
Good for jet boats with A impeller. Needs good manifold, likes headers.
Emissions Note:
This part is only legal for sale and use on Uncontrolled (Non-Emissions Controlled) Vehicles or on vehicles used solely for the purposes of closed competition racing.
CLICK THIS LINK FOR IMPORTANT CARB & EPA EMISSIONS INFORMATION ABOUT THIS PART
Part TypeCamshaft
BrandCOMP CAMS
Package Height2.75
Package Width2.87
Package Length24.5
Weight11.6 PG
Part CategoryPerformance Parts
Exh. Duration @ .050 In. (Deg)244
Cam StyleHydraulic flat tappet
Grind NumberFF XM 278H-12
Exh. Duration Advertised (Deg)292
Engine Make/SizeFord 429-460
Intake Valve Lift With Factory Rocker Arm Ratio (I0.574
Int. Duration @ .050 In. (Deg)234
Basic Operating Rpm Range2,000-6,200
Intake Valve Lift0.564 in (14.326 mm)
Computer-Controlled CompatibleNo
Int. Duration Advertised (Deg)278
Lobe Separation (Deg)112
Rpm Range2000-6200
Advertised Duration278 int./292 exh.
Exhaust Valve Lift With Factory Rocker Arm Ratio (0.576
UsageMarine
Valve Lift With Factory Rocker Arm Ratio0.574 int./0.576 exh.
QuantitySold individually
Exhaust Valve Lift0.566 in (14.376 mm)
Advertised Intake Duration278
Intake Duration At 050 Inch Lift234
Exhaust Duration At 050 Inch Lift244
Advertised Exhaust Duration292
Lifter TypeHydraulic Flat Tappet
Duration At 050 Inch Lift234 int./244 exh.
Valve Springs RequiredYes
Vendor Part Number34-241-5
Package Qty1
Package TypeEA
