Vehicle Info NeededCOMP CAMSPART NUMBER: 249-34-245-5

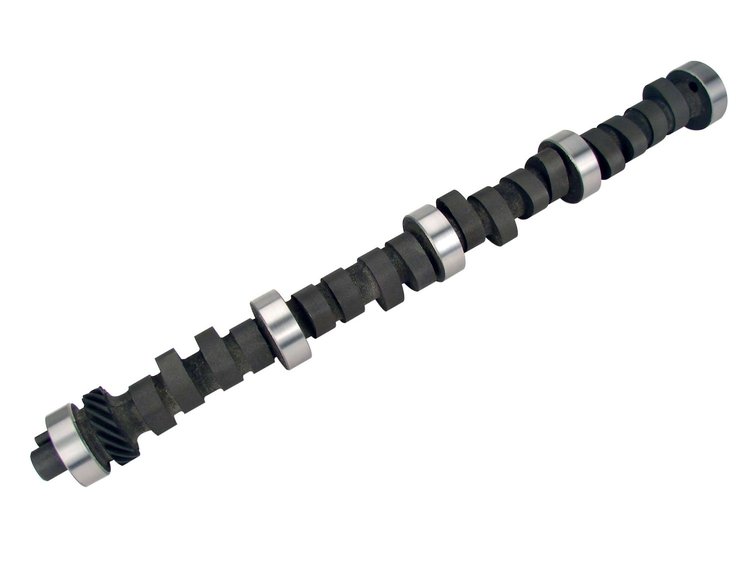

Comp Cams Xtreme Marine Hydraulic Flat Tappet Camshafts
$32595
Ships Tomorrow
Lowest Price GuaranteeFord 429, 460ci 1968-94
- Xtreme Marine Hydraulic Flat Tappet Camshaft
Ford 429, 460ci 1968-94
Lift: .580"/.585"
Duration: 288°/304°
Lobe Separation Angle: 112°
RPM Range: 2200-6500
Good for jet boat with A impeller. Great for skiing and performance use.
Ford; 429; 460; BBF; Big Block Ford; 385; Cobra Jet; 429 Cobra Jet; Interceptor; Lima; F100; F150; F250; Super Duty; E150; E250
Good for jet boat with A impeller. Great for skiing and performance use.
Emissions Note:
This part is only legal for sale and use on Uncontrolled (Non-Emissions Controlled) Vehicles or on vehicles used solely for the purposes of closed competition racing.
CLICK THIS LINK FOR IMPORTANT CARB & EPA EMISSIONS INFORMATION ABOUT THIS PART
Part TypeCamshaft
BrandCOMP CAMS
Package Height2.75
Package Width2.87
Package Length24.5
Weight11.55 PG
Part CategoryPerformance Parts
Exh. Duration @ .050 In. (Deg)254
Cam StyleHydraulic flat tappet
Grind NumberXM288H
Exh. Duration Advertised (Deg)304
Engine Make/SizeFord 429-460
Intake Valve Lift With Factory Rocker Arm Ratio (I0.58
Int. Duration @ .050 In. (Deg)244
Basic Operating Rpm Range2,200-6,500
Intake Valve Lift0.57 in (14.478 mm)
Computer-Controlled CompatibleNo
Int. Duration Advertised (Deg)288
Lobe Separation (Deg)112
Rpm Range2200-6500
Advertised Duration288 int./304 exh.
Exhaust Valve Lift With Factory Rocker Arm Ratio (0.585
UsageMarine
Valve Lift With Factory Rocker Arm Ratio0.580 int./0.585 exh.
QuantitySold individually
Exhaust Valve Lift0.575 in (14.605 mm)
Advertised Intake Duration288
Intake Duration At 050 Inch Lift244
Exhaust Duration At 050 Inch Lift254
Advertised Exhaust Duration304
Lifter TypeHydraulic Flat Tappet
Duration At 050 Inch Lift244 int./254 exh.
Valve Springs RequiredYes
Vendor Part Number34-245-5
Package Qty1
Package TypeEA
