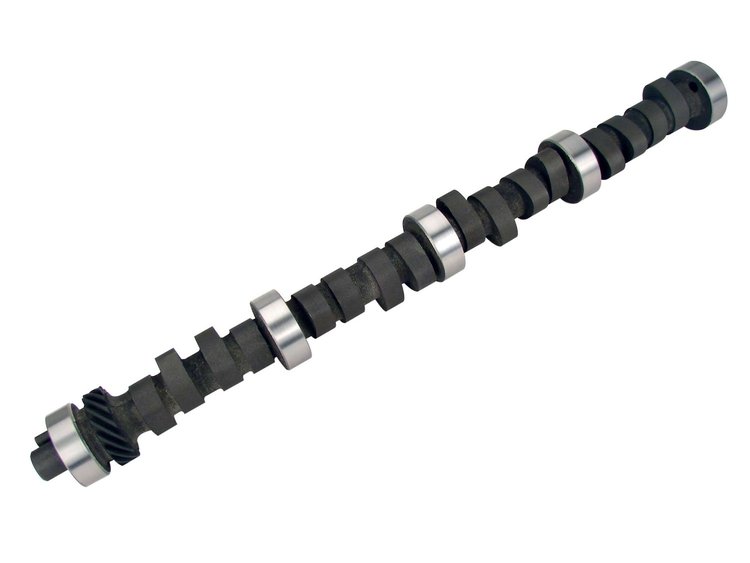

Comp Cams Magnum Hydraulic Flat Tappet Camshafts

Vehicle Info Needed

COMP CAMSPART NUMBER: 249-34-340-4

Comp Cams Magnum Hydraulic Flat Tappet Camshafts

Name: Comp Cams Magnum Hydraulic Flat Tappet Camshafts
Brand: COMP CAMS
SKU: 249-34-340-4
Price: 309.95 USD
Availability: InStock

^$309⁹⁵

Ships on 09/10/2026

Lowest Price Guarantee

Ford 429, 460 c.i. 8 CYL. 1968-1994

.540"/.540"

270°/270°

110°

1800-5800

Ford; 429; 460; BBF; Big Block Ford; 385; Cobra Jet; 429 Cobra Jet; Interceptor; Lima; F100; F150; F250; Super Duty; E150; E250

Emissions Note:

This part is only legal for sale and use on Uncontrolled (Non-Emissions Controlled) Vehicles or on vehicles used solely for the purposes of closed competition racing.

CLICK THIS LINK FOR IMPORTANT CARB & EPA EMISSIONS INFORMATION ABOUT THIS PART

Part TypeCamshaft

BrandCOMP CAMS

Package Height2.9

Package Width2.9

Package Length24.2

Weight11.25 PG

Part CategoryPerformance Parts

Exh. Duration @ .050 In. (Deg)224

Cam StyleMechanical flat tappet

Grind NumberFF 270S-10

Exh. Duration Advertised (Deg)270

Engine Make/SizeFord 429-460

Intake Valve Lift With Factory Rocker Arm Ratio (I0.54

Int. Duration @ .050 In. (Deg)224

Basic Operating Rpm Range1,800-5,800

Intake Valve Lash0.022 in (0.559 mm)

Intake Valve Lift0.54 in (13.716 mm)

Computer-Controlled CompatibleNo

Int. Duration Advertised (Deg)270

Lobe Separation (Deg)110

Rpm Range1800-5800

Advertised Duration270 int./270 exh.

Exhaust Valve Lift With Factory Rocker Arm Ratio (0.54

UsageStreet/Strip

Valve Lift With Factory Rocker Arm Ratio0.540 int./0.540 exh.

QuantitySold individually

Exhaust Valve Lash0.022 in (0.559 mm)

Exhaust Valve Lift0.54 in (13.716 mm)

Advertised Intake Duration270

Intake Duration At 050 Inch Lift224

Exhaust Duration At 050 Inch Lift224

Advertised Exhaust Duration270

Lifter TypeMechanical Flat Tappet

Duration At 050 Inch Lift224 int./224 exh.

Valve Springs RequiredYes

Vendor Part Number34-340-4

Package Qty1

Package TypeEA
