Vehicle Info NeededCOMP CAMSPART NUMBER: 249-34-653-5

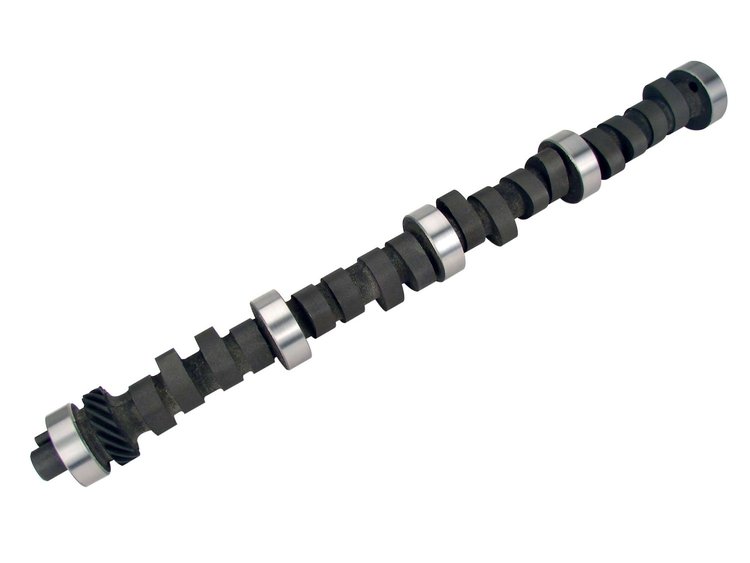

Drag Race Mechanical Flat Tappet Camshaft Ford 429, 460 1968-94 Lift: .649"/.642"
$32595
Ships on 09/15/2026
Lowest Price GuaranteeFord 429, 460 1968-94
- Drag Race Mechanical Flat Tappet Camshaft
- Lift: .649"/.642"
- Duration: 310°/314°
- Lobe Separation Angle: 108°
- RPM Range: 4000-7000
- Drag Race Xtreme RX Camshaft
- 1 Year Limited Warranty
Ford; 429; 460; BBF; Big Block Ford; 385; Cobra Jet; 429 Cobra Jet; Interceptor; Lima; F100; F150; F250; Super Duty; E150; E250
Jet boat A impeller, hydro or flat bottom river racer. Use tunnel ram. 4 speed or 4500 stall in 460c.i. and 5000 stall in 429. 11:1+ compression.
Ford 429, 460 1968-94
Emissions Note:
This part is only legal for sale and use on Uncontrolled (Non-Emissions Controlled) Vehicles or on vehicles used solely for the purposes of closed competition racing.
CLICK THIS LINK FOR IMPORTANT CARB & EPA EMISSIONS INFORMATION ABOUT THIS PART
Part TypeCamshaft
BrandCOMP CAMS
Package Height2.75
Package Width2.87
Package Length24.5
Weight11.2 PG
Part CategoryPerformance Parts
Exh. Duration @ .050 In. (Deg)276
Cam StyleMechanical flat tappet
Grind NumberFF 310B-8
Exh. Duration Advertised (Deg)314-1
Engine Make/SizeFord 429-460
Intake Valve Lift With Factory Rocker Arm Ratio (I0.649
Int. Duration @ .050 In. (Deg)270
Basic Operating Rpm Range4,000-6,800
Intake Valve Lash0.03 in (0.762 mm)
Intake Valve Lift0.656 in (16.662 mm)
Computer-Controlled CompatibleNo
Int. Duration Advertised (Deg)310-2
Lobe Separation (Deg)108
Rpm Range4000-7000
Advertised Duration310 int./314 exh.
Exhaust Valve Lift With Factory Rocker Arm Ratio (0.642
UsageStrip
Valve Lift With Factory Rocker Arm Ratio0.649 int./0.642 exh.
QuantitySold individually
Exhaust Valve Lash0.03 in (0.762 mm)
Exhaust Valve Lift0.641 in (16.281 mm)
Advertised Intake Duration310
Intake Duration At 050 Inch Lift270
Exhaust Duration At 050 Inch Lift276
Advertised Exhaust Duration314
Lifter TypeMechanical Flat Tappet
Part FitmentSemi Universal
Duration At 050 Inch Lift270 int./276 exh.
Valve Springs RequiredYes
Vendor Part Number34-653-5
Package Qty1
Package TypeEA
