Vehicle Info NeededCOMP CAMSPART NUMBER: 249-34-715-9

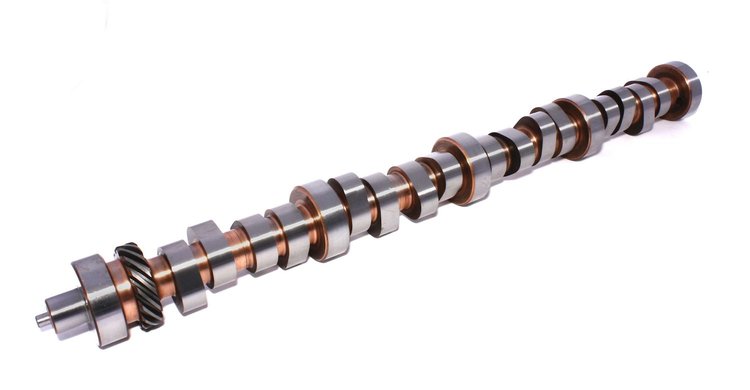

Drag Race Mechanical Roller Camshaft Lift .726"/.726" Duration 304/312 RPM Range 3800-6800
$55895
3 left in stock
Ships on Sep 14, 2026
Lowest Price GuaranteeFord 429, 460 c.i. 8 CYL. 1968-1995
- Drag Race Mechanical Roller Camshaft
Lift .726"/.726"
Duration 304/312
RPM Range 3800-6800
429-460ci with 11:1 compression or better with 4500 stall.
| Operating Range: | 3800-6800 |
| Duration Advertised: | 304° Intake / 312° Exhaust |
| Duration @ .050' Lift: | 268° Intake / 276° Exhaust |
| Valve Lift W/1.73 Rocker: | .726' Intake / .726' Exhaust |
| Valve Setting: | .028' Intake / .030' Exhaust |
| Lobe Separation Angle: | 108° |
Ford; 429; 460; BBF; Big Block Ford; 385; Cobra Jet; 429 Cobra Jet; Interceptor; Lima; F100; F150; F250; Super Duty; E150; E250
Great power, 11:1+ compression with 4500+ stall.
Emissions Note:
This part is only legal for sale and use on Uncontrolled (Non-Emissions Controlled) Vehicles or on vehicles used solely for the purposes of closed competition racing.
CLICK THIS LINK FOR IMPORTANT CARB & EPA EMISSIONS INFORMATION ABOUT THIS PART
Part TypeCamshaft
BrandCOMP CAMS
Package Height2.75
Package Width2.87
Package Length24.5
Weight11.78 PG
Part CategoryPerformance Parts
Exh. Duration @ .050 In. (Deg)276
Cam StyleMechanical roller tappet
Grind Number304BR-8
Exh. Duration Advertised (Deg)312-5
Engine Make/SizeFord 429-460
Intake Valve Lift With Factory Rocker Arm Ratio (I0.726
Int. Duration @ .050 In. (Deg)268
Basic Operating Rpm Range3,800-6,800
Intake Valve Lash0.028 in (0.711 mm)
Intake Valve Lift0.726 in (18.44 mm)
Computer-Controlled CompatibleNo
Int. Duration Advertised (Deg)304-5
Lobe Separation (Deg)108
Rpm Range3800-6800
Advertised Duration304 int./312 exh.
Exhaust Valve Lift With Factory Rocker Arm Ratio (0.726
UsageStrip
Valve Lift With Factory Rocker Arm Ratio0.726 int./0.726 exh.
QuantitySold individually
Exhaust Valve Lash0.03 in (0.762 mm)
Exhaust Valve Lift0.726 in (18.44 mm)
Advertised Intake Duration304
Intake Duration At 050 Inch Lift268
Exhaust Duration At 050 Inch Lift276
Advertised Exhaust Duration312
Lifter TypeMechanical Roller
Part FitmentSemi Universal
Duration At 050 Inch Lift268 int./276 exh.
Valve Springs RequiredYes
Vendor Part Number34-715-9
Package Qty1
Package TypeEA
