Vehicle Info NeededCOMP CAMSPART NUMBER: 249-34-746-9

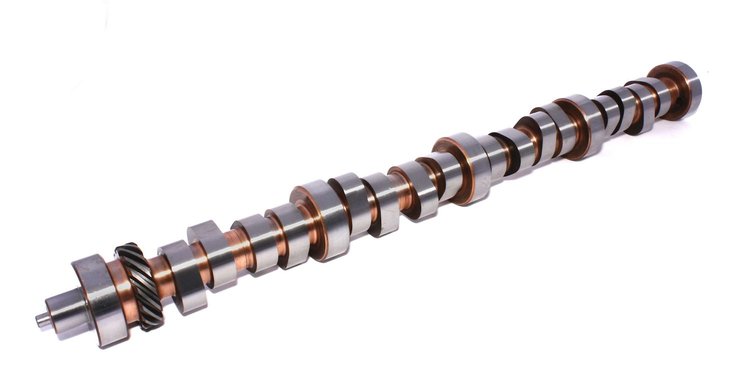

Drag Race Mechanical Roller Camshaft Lift .796"/.726" Duration 319/326 RPM Range 5500-7500
$55895
Ships on 09/15/2026
Lowest Price GuaranteeFord 429, 460 c.i. 8 CYL. 1968-1995
- Drag Race Mechanical Roller Camshaft
Lift .796"/.726"
Duration 319/326
RPM Range 5500-7500
Mechanical Roller-Baseline for unblown gas or alcohol. Two 4 BBL.s or injection.
Ford; 429; 460; BBF; Big Block Ford; 385; Cobra Jet; 429 Cobra Jet; Interceptor; Lima; F100; F150; F250; Super Duty; E150; E250
Good for unblown gas or alcohol. Two 4 BBL or injection. 5500+ stall or 4 speed in light car. 460 and larger engine.
Emissions Note:
This part is only legal for sale and use on Uncontrolled (Non-Emissions Controlled) Vehicles or on vehicles used solely for the purposes of closed competition racing.
CLICK THIS LINK FOR IMPORTANT CARB & EPA EMISSIONS INFORMATION ABOUT THIS PART
Part TypeCamshaft
BrandCOMP CAMS
Package Height2.75
Package Width2.87
Package Length24.5
Weight11.0 PG
Part CategoryPerformance Parts
Exh. Duration @ .050 In. (Deg)288
Cam StyleMechanical roller tappet
Grind Number319CR-10
Exh. Duration Advertised (Deg)326-4
Engine Make/SizeFord 429-460
Intake Valve Lift With Factory Rocker Arm Ratio (I0.796
Int. Duration @ .050 In. (Deg)285
Basic Operating Rpm Range5,500-7,500
Intake Valve Lash0.03 in (0.762 mm)
Intake Valve Lift0.796 in (20.218 mm)
Computer-Controlled CompatibleNo
Int. Duration Advertised (Deg)319-3
Lobe Separation (Deg)110
Rpm Range5500-7500
Advertised Duration319 int./326 exh.
Exhaust Valve Lift With Factory Rocker Arm Ratio (0.726
UsageMarine
Valve Lift With Factory Rocker Arm Ratio0.796 int./0.726 exh.
QuantitySold individually
Exhaust Valve Lash0.03 in (0.762 mm)
Exhaust Valve Lift0.726 in (18.44 mm)
Advertised Intake Duration319
Intake Duration At 050 Inch Lift285
Exhaust Duration At 050 Inch Lift288
Advertised Exhaust Duration326
Lifter TypeMechanical Roller
Part FitmentSemi Universal
Duration At 050 Inch Lift285 int./288 exh.
Valve Springs RequiredYes
Vendor Part Number34-746-9
Package Qty1
Package TypeEA
