Vehicle Info NeededCOMP CAMSPART NUMBER: 249-35-216-3

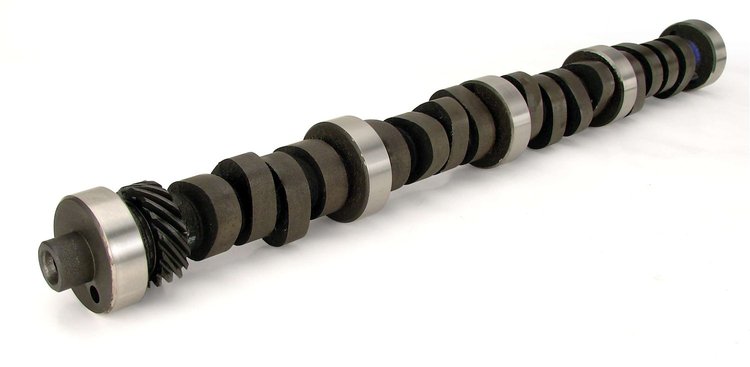

High Energy 260H Hydraulic Flat Tappet Camshaft Lift .447"/.447" Duration 260°/260° RPM Range 1200-5200
$29795
Ships on Sep 15, 2026
Lowest Price GuaranteeFord 351W 8 cyl. 1969-1995
- High Energy 260H Hydraulic Flat Tappet Camshaft
Lift .447"/.447"
Duration 260°/260°
RPM Range 1200-5200
Hydraulic-Great torque for trucks, 4WD's and towing applications. Smooth idle. Best for tow vehicles with automatic. Smooth idle.
Ford, 351W, Windsor, 351 Windsor, 302, 5.0 HO, Explorer, Mutang, Ford Mustang, 408, 347, Fox Body Mustang, Fox Body, 302 HO, Cougar, F100, F150
Great torque for trucks and 4WD. Best for economy or towing vehicles with automatic. Smooth idle.
Emissions Note:
This part is only legal for sale and use on Uncontrolled (Non-Emissions Controlled) Vehicles or on vehicles used solely for the purposes of closed competition racing.
CLICK THIS LINK FOR IMPORTANT CARB & EPA EMISSIONS INFORMATION ABOUT THIS PART
Part TypeCamshaft
BrandCOMP CAMS
Package Height2.8
Package Width3.0
Package Length24.3
Weight9.8 PG
Part CategoryPerformance Parts
Exh. Duration @ .050 In. (Deg)212
Cam StyleHydraulic flat tappet
Grind NumberFW 260H-10
Exh. Duration Advertised (Deg)260
Engine Make/SizeFord 5.0L/302
Intake Valve Lift With Factory Rocker Arm Ratio (I0.447
Int. Duration @ .050 In. (Deg)212
Basic Operating Rpm Range1,200-5,200
Intake Valve Lift0.447 in (11.354 mm)
Computer-Controlled CompatibleNo
Int. Duration Advertised (Deg)260
Lobe Separation (Deg)110
Rpm Range1200-5200
Advertised Duration260 int./260 exh.
Exhaust Valve Lift With Factory Rocker Arm Ratio (0.447
UsageStreet/Performance
Valve Lift With Factory Rocker Arm Ratio0.447 int./0.447 exh.
QuantitySold individually
Exhaust Valve Lift0.447 in (11.354 mm)
Advertised Intake Duration260
Intake Duration At 050 Inch Lift212
Exhaust Duration At 050 Inch Lift212
Advertised Exhaust Duration260
Lifter TypeHydraulic Flat Tappet
Duration At 050 Inch Lift212 int./212 exh.
Valve Springs RequiredYes
Vendor Part Number35-216-3
Package Qty1
Package TypeEA
