Vehicle Info NeededCOMP CAMSPART NUMBER: 249-35-226-3

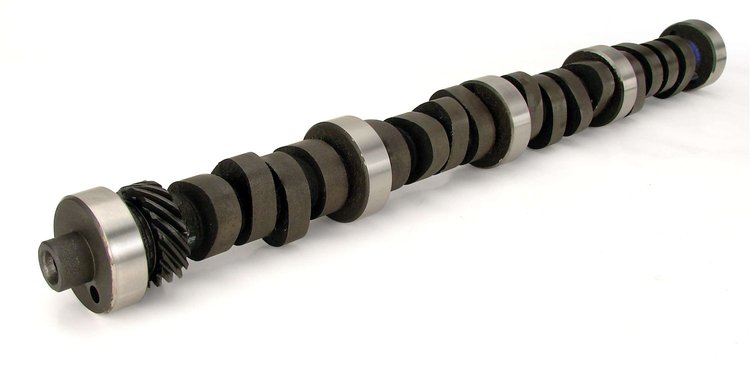

Magnum 280H Hydraulic Flat Tappet Camshaft Lift: .512" /.512" Duration: 280°/280° RPM Range: 2000-6000
$29795
Ships on Sep 15, 2026
Lowest Price GuaranteeFord 351W 8-cyl. 1969-1995
- Magnum 280H Hydraulic Flat Tappet Camshaft
Lift: .512''/.512"
Duration: 280°/280°
RPM Range: 2000-6000
*Note: Firing Order 1-3-7-2-6-5-4-8
Excellent street machine camshaft. Headers and mild converter with low gears. Rough idle. 9:1 compression.
| Operating Range: | 2000-6000 RPM |
| Duration Advertised: | 280° Intake / 280° Exhaust |
| Duration @ .050' Lift: | 230° Intake / 230° Exhaust |
| Valve Lift w/1.6 Rockers: | .512' Intake / .512' Exhaust |
| Lobe Separation Angle: | 110° |
Ford, 351W, Windsor, 351 Windsor, 302, 5.0 HO, Explorer, Mutang, Ford Mustang, 408, 347, Fox Body Mustang, Fox Body, 302 HO, Cougar, F100, F150
Excellent street machine camshaft. Headers and 2200+ stall with low gears. Rough idle. 9:1 compression.
Emissions Note:
This part is only legal for sale and use on Uncontrolled (Non-Emissions Controlled) Vehicles or on vehicles used solely for the purposes of closed competition racing.
CLICK THIS LINK FOR IMPORTANT CARB & EPA EMISSIONS INFORMATION ABOUT THIS PART
Part TypeCamshaft
BrandCOMP CAMS
Package Height2.8
Package Width3.0
Package Length24.4
Weight9.6 PG
Part CategoryPerformance Parts
Exh. Duration @ .050 In. (Deg)230
Cam StyleHydraulic flat tappet
Grind NumberFW 280H-10
Exh. Duration Advertised (Deg)280
Engine Make/SizeFord 5.0L/302
Intake Valve Lift With Factory Rocker Arm Ratio (I0.512
Int. Duration @ .050 In. (Deg)230
Basic Operating Rpm Range2,000-6,000
Intake Valve Lift0.512 in (13.005 mm)
Computer-Controlled CompatibleNo
Int. Duration Advertised (Deg)280
Lobe Separation (Deg)110
Rpm Range2000-6000
Advertised Duration280 int./280 exh.
Exhaust Valve Lift With Factory Rocker Arm Ratio (0.512
UsageStreet/Strip
Valve Lift With Factory Rocker Arm Ratio0.512 int./0.512 exh.
QuantitySold individually
Exhaust Valve Lift0.512 in (13.005 mm)
Advertised Intake Duration280
Intake Duration At 050 Inch Lift230
Exhaust Duration At 050 Inch Lift230
Advertised Exhaust Duration280
Lifter TypeHydraulic Flat Tappet
Part FitmentSemi Universal
Duration At 050 Inch Lift230 int./230 exh.
Valve Springs RequiredYes
Vendor Part Number35-226-3
Package Qty1
Package TypeEA
