Vehicle Info NeededCOMP CAMSPART NUMBER: 249-35-235-3

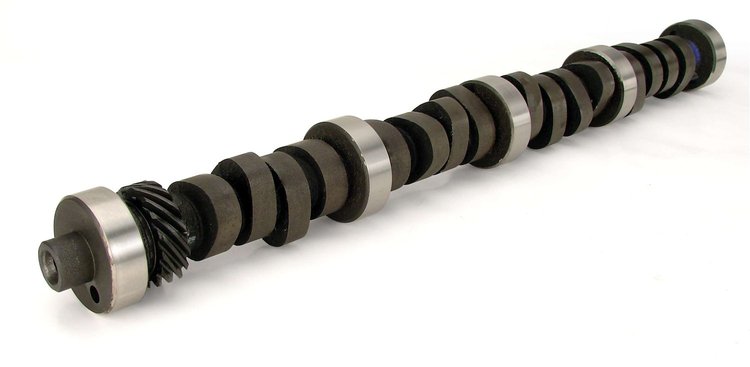

'Xtreme 4x4' Hydraulic Flat Tappet Camshaft
$29795
2 left in stock
Ships Tomorrow
Lowest Price GuaranteeFord 351W 8 cyl. 1969-1995
- Xtreme 4x4 X4254H Hydraulic Flat Tappet Camshaft
Lift: .477''/.493''
Duration: 254°/262°
Lobe Separation Angle: 111°
RPM Range: 1200-5200
Hydraulic-Good torque for 4x4, excellent mid-range power, great for RV or towing.
| Operating Range: | 1200-5200 RPM |
| Duration Advertised: | 254° Intake / 262° Exhaust |
| Duration @ .050' Lift: | 210° Intake / 218° Exhaust |
| Valve Lift w/1.6 Rockers: | .477' Intake / .493' Exhaust |
| Lobe Separation Angle: | 111° |
Ford, 351W, Windsor, 351 Windsor, 302, 5.0 HO, Explorer, Mutang, Ford Mustang, 408, 347, Fox Body Mustang, Fox Body, 302 HO, Cougar, F100, F150
Good torque for 4x4, excellent mid-range power, great for RV or towing.
Emissions Note:
This part is only legal for sale and use on Uncontrolled (Non-Emissions Controlled) Vehicles or on vehicles used solely for the purposes of closed competition racing.
CLICK THIS LINK FOR IMPORTANT CARB & EPA EMISSIONS INFORMATION ABOUT THIS PART
Part TypeCamshaft
BrandCOMP CAMS
Package Height2.75
Package Width2.87
Package Length24.5
Weight9.75 PG
Part CategoryPerformance Parts
Exh. Duration @ .050 In. (Deg)218
Cam StyleHydraulic flat tappet
Grind NumberFW X4 254H-11
Exh. Duration Advertised (Deg)262
Engine Make/SizeFord 351W
Intake Valve Lift With Factory Rocker Arm Ratio (I0.477
Int. Duration @ .050 In. (Deg)210
Basic Operating Rpm Range1,200-5,200
Intake Valve Lift0.477 in (12.116 mm)
Computer-Controlled CompatibleNo
Int. Duration Advertised (Deg)254
Lobe Separation (Deg)111
Rpm Range1200-5200
Advertised Duration254 int./262 exh.
Exhaust Valve Lift With Factory Rocker Arm Ratio (0.493
UsageStreet/Performance
Valve Lift With Factory Rocker Arm Ratio0.477 int./0.493 exh.
QuantitySold individually
Exhaust Valve Lift0.493 in (12.522 mm)
Advertised Intake Duration254
Intake Duration At 050 Inch Lift210
Exhaust Duration At 050 Inch Lift218
Advertised Exhaust Duration262
Lifter TypeHydraulic Flat Tappet
Part FitmentSemi Universal
Duration At 050 Inch Lift210 int./218 exh.
Valve Springs RequiredYes
Vendor Part Number35-235-3
Package Qty1
Package TypeEA
