Vehicle Info NeededCOMP CAMSPART NUMBER: 249-35-238-3
Xtreme Energy 262H Hydraulic Flat Tappet Camshaft Only Lift .493"/.500" Duration 262°/270° RPM Range 1300-5600
$29795
Ships on Sep 15, 2026
Lowest Price GuaranteeFord 351W 8 cyl. 1969-1996

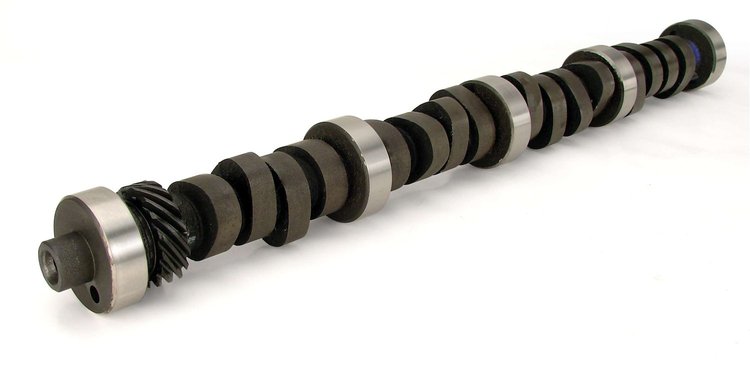

- Xtreme Energy 262H Hydraulic Flat Tappet Camshaft Only
Lift .493"/.500"
Duration 262°/270°
RPM Range 1300-5600
Hydraulic-Excellent response, good mid-range, stock converter, 3.23-4.10 gear.
Ford, 351W, Windsor, 351 Windsor, 302, 5.0 HO, Explorer, Mutang, Ford Mustang, 408, 347, Fox Body Mustang, Fox Body, 302 HO, Cougar, F100, F150
Excellent response, good mid-range, stock converter, 3.23-4.10 gear.
Emissions Note:
This part is only legal for sale and use on Uncontrolled (Non-Emissions Controlled) Vehicles or on vehicles used solely for the purposes of closed competition racing.
CLICK THIS LINK FOR IMPORTANT CARB & EPA EMISSIONS INFORMATION ABOUT THIS PART
Part TypeCamshaft
BrandCOMP CAMS
Package Height2.75
Package Width2.87
Package Length24.5
Weight9.9 PG
Part CategoryPerformance Parts
Exh. Duration @ .050 In. (Deg)224
Cam StyleHydraulic flat tappet
Grind NumberFW XE262H-10
Exh. Duration Advertised (Deg)270
Engine Make/SizeFord 351W
Intake Valve Lift With Factory Rocker Arm Ratio (I0.493
Int. Duration @ .050 In. (Deg)218
Basic Operating Rpm Range1,300-5,600
Intake Valve Lift0.493 in (12.522 mm)
Computer-Controlled CompatibleNo
Int. Duration Advertised (Deg)262
Lobe Separation (Deg)110
Rpm Range1300-5600
Advertised Duration262 int./270 exh.
Exhaust Valve Lift With Factory Rocker Arm Ratio (0.5
UsageStreet/Performance
Valve Lift With Factory Rocker Arm Ratio0.493 int./0.500 exh.
QuantitySold individually
Exhaust Valve Lift0.5 in (12.7 mm)
Advertised Intake Duration262
Intake Duration At 050 Inch Lift218
Exhaust Duration At 050 Inch Lift224
Advertised Exhaust Duration270
Lifter TypeHydraulic Flat Tappet
Duration At 050 Inch Lift218 int./224 exh.
Valve Springs RequiredYes
Vendor Part Number35-238-3
Package Qty1
Package TypeEA
