Vehicle Info NeededCOMP CAMSPART NUMBER: 249-35-255-5

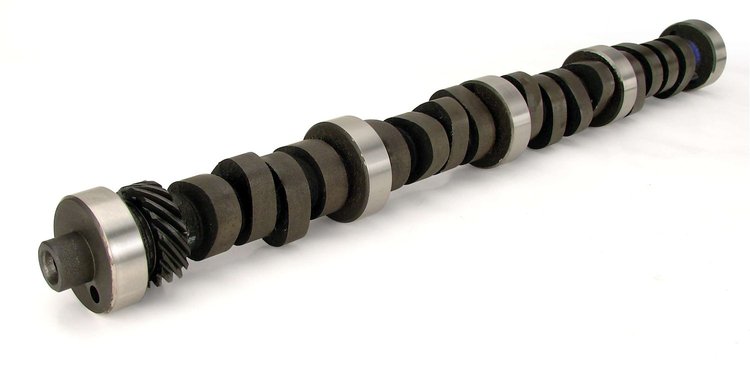

Comp Cams Xtreme 4x4 Hydraulic Flat Tappet Camshafts
$32595
2 left in stock
Ships Today
Lowest Price GuaranteeFord 351W Computer (EFI)
- Xtreme 4x4 (EFI) XE254H Hydraulic Flat Tappet Camshaft
Lift: .478''/.485''
Duration: 254°/258°
Lobe Separation Angle: 114°
RPM Range: 1000-5200
Hydraulic-E.F.I. Speed Density, works with stock computer. Very strong Torque, Excellent mileage, good idle quality.
Ford, 351W, Windsor, 351 Windsor, 302, 5.0 HO, Explorer, Mutang, Ford Mustang, 408, 347, Fox Body Mustang, Fox Body, 302 HO, Cougar, F100, F150
EFI speed density, works with stock computer. Very strong torque, excellent mileage, good idle quality.
Emissions Note:
This part is only legal for sale and use on Uncontrolled (Non-Emissions Controlled) Vehicles or on vehicles used solely for the purposes of closed competition racing.
CLICK THIS LINK FOR IMPORTANT CARB & EPA EMISSIONS INFORMATION ABOUT THIS PART
Part TypeCamshaft
BrandCOMP CAMS
Package Height2.8
Package Width3.0
Package Length24.3
Weight9.7 PG
Part CategoryPerformance Parts
Exh. Duration @ .050 In. (Deg)214
Cam StyleHydraulic flat tappet
Grind NumberFW XE254H-14
Exh. Duration Advertised (Deg)258
Engine Make/SizeFord 351W
Intake Valve Lift With Factory Rocker Arm Ratio (I0.478
Int. Duration @ .050 In. (Deg)210
Basic Operating Rpm Range1,000-5,200
Intake Valve Lift0.478 in (12.141 mm)
Computer-Controlled CompatibleYes
Int. Duration Advertised (Deg)254
Lobe Separation (Deg)114
Rpm Range1000-5200
Advertised Duration254 int./258 exh.
Exhaust Valve Lift With Factory Rocker Arm Ratio (0.485
UsageOEM
Valve Lift With Factory Rocker Arm Ratio0.478 int./0.485 exh.
QuantitySold individually
Exhaust Valve Lift0.485 in (12.319 mm)
Advertised Intake Duration254
Intake Duration At 050 Inch Lift210
Exhaust Duration At 050 Inch Lift214
Advertised Exhaust Duration258
Lifter TypeHydraulic Flat Tappet
Part FitmentSemi Universal
Duration At 050 Inch Lift210 int./214 exh.
Valve Springs RequiredYes
Vendor Part Number35-255-5
Package Qty1
Package TypeEA
