Vehicle Info NeededCOMP CAMSPART NUMBER: 249-35-320-8

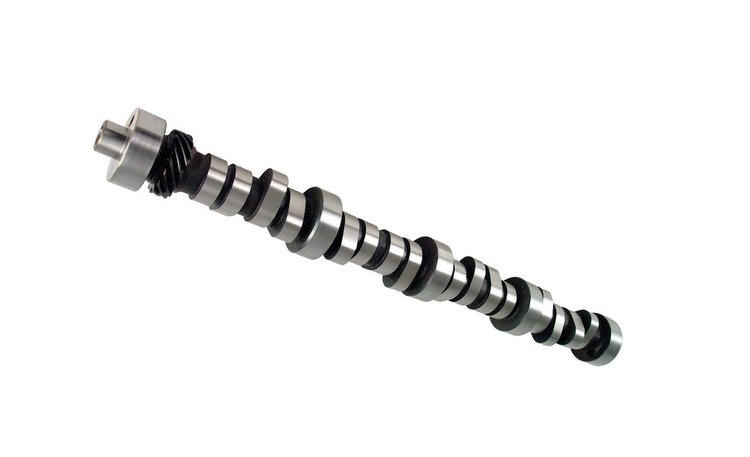

Comp Cams Xtreme Energy Hydraulic Roller Camshafts
$57795
Ships on 09/09/2026
Lowest Price GuaranteeFord 5.0L 8 cyl. 1982-2002Computer Controlled (EFI) for engines originally equipped with hydraulic roller camshaft. (WITH 1.7 ROCKERS)
- Xtreme Energy XE264HR Hydraulic Roller Camshaft
Lift: .544"/.544"
Duration: 264°/270°
Lobe Separation Angle: 112°
RPM Range: 1500-5500
Hydraulic Roller-For use with 1.7:1 rockers. Mild street performance, good HO replacement cam.
Ford; SBF; Mustang; Windsor; Fairlane; Meteor; Mercury; GT; 22; 260; Sunbeam; Tiger; 289; 302; 351; 289; HiPo; K-Code; GT-350; Shelby; Boss; 5.0; 308; Windsor; Torino; Cougar; F-150; Squire; Thunderbird; LTD; Galaxie; Grand Marquis
For use with 1.7:1 rockers. Mild street performance, good upgrade for factory cam.
Emissions Note:
This part is only legal for sale and use on Uncontrolled (Non-Emissions Controlled) Vehicles or on vehicles used solely for the purposes of closed competition racing.
CLICK THIS LINK FOR IMPORTANT CARB & EPA EMISSIONS INFORMATION ABOUT THIS PART
Part TypeCamshaft
BrandCOMP CAMS
Package Height3.0
Package Width3.2
Package Length24.3
Weight9.65 PG
Part CategoryPerformance Parts
Exh. Duration @ .050 In. (Deg)218
Cam StyleHydraulic roller tappet
Grind NumberFW XE264HR-12
Exh. Duration Advertised (Deg)270
Engine Make/SizeFord 5.0L/302
Intake Valve Lift With Factory Rocker Arm Ratio (I0.544
Int. Duration @ .050 In. (Deg)212
Basic Operating Rpm Range1,500-5,500
Intake Valve Lift0.544 in (13.818 mm)
Computer-Controlled CompatibleYes
Int. Duration Advertised (Deg)264
Lobe Separation (Deg)112
Rpm Range1500-5500
Advertised Duration264 int./270 exh.
Exhaust Valve Lift With Factory Rocker Arm Ratio (0.544
UsageStreet/Performance
Valve Lift With Factory Rocker Arm Ratio0.544 int./0.544 exh.
QuantitySold individually
Exhaust Valve Lift0.544 in (13.818 mm)
Advertised Intake Duration264
Intake Duration At 050 Inch Lift212
Exhaust Duration At 050 Inch Lift218
Advertised Exhaust Duration270
Lifter TypeHydraulic Roller
Duration At 050 Inch Lift212 int./218 exh.
Valve Springs RequiredYes
Vendor Part Number35-320-8
Package Qty1
Package TypeEA
