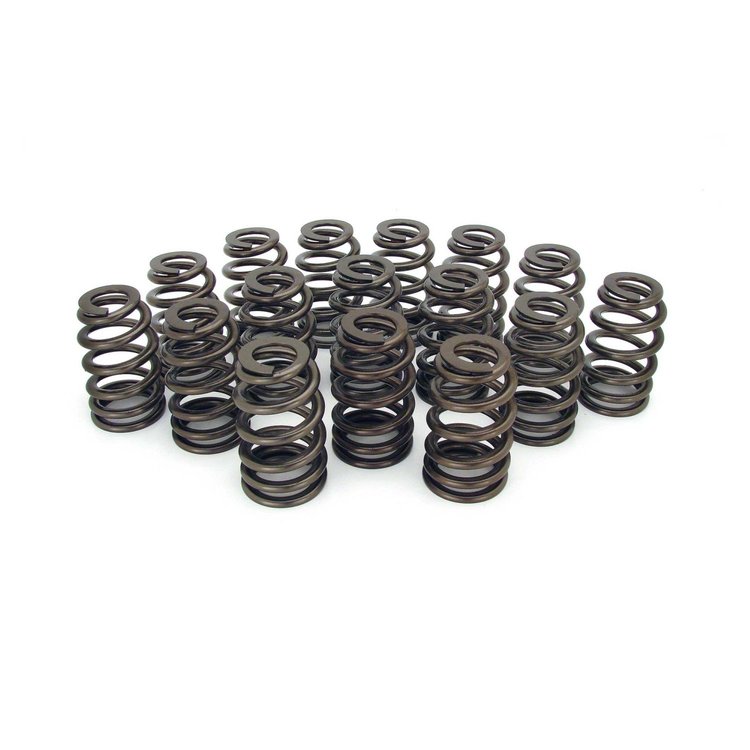

Beehive Valve Spring Universal

Name: Beehive Valve Spring Universal
Brand: COMP CAMS
SKU: 249-26986-16
Price: 273.95 USD
Availability: InStock

^$273⁹⁵

Ships on Sep 14, 2026

Lowest Price Guarantee

Universal

Universal
O.D. Base: 1.415
16/pkg

Designed for hydraulic or solid flat tappet cams cams as well as hydraulic rollers
.625" maximum lift, 1.415" O.D.
Great for Pontiac, Oldsmobile and Small Block Chrysler or other applications that require shorter installed height.

<<Specs:
OD: Top 1.065" Bottom 1.415"
ID: Top .650" Bottom 1.000"
Seat Pressure: 109 lbs @ 1.800'
Open Pressure: 284 lbs @ 1.175'
Coil Bind: 1.060"
Spring Rate: 280 lbs/in
Valve Springs; Dual Valve Springs; Single Valve Springs; Beehive Springs; Conical Springs; Valve Lift; Max Lift; Spring Kit

Advanced Beehive Valve Spring Technology

Comp Cams Beehive Valve Springs are revolutionizing performance street/strip applications! These valve springs deliver increased valve train stability while offering a reduction in weight. This is achieved with less spring pressure for better valve control and reduced weight of both the spring and the retainer. Using Comp Spintron testing equipment, the Beehive spring was engineered to maximize "harmonic resistance" through reduced mass and unique coil spacing.

With highly reduced internal spring harmonics, engines equipped with these state-of-the-art Beehive valve springs rev higher and live longer as compared with other "performance" springs. For street/strip applications, these valve springs are the best choice possible. Because of the unique Beehive design, the valve train can handle more rpm and more aggressive cam profiles for occasional bracket racing but still retain durability for street driving.

Part TypeValve Spring Kit

Product LineComp Cams Beehive Valve Springs

BrandCOMP CAMS

Package Height2.9

Package Width3.7

Package Length13.5

Weight3.1 PG

Part CategoryPerformance Parts

CoatedNo

Coil Bind Height1.04 in (26.416 mm)

Damper Spring IncludedNo

Spring Rate280 lbs./in.
