Vehicle Info NeededCOMP CAMSPART NUMBER: 249-35-328-8

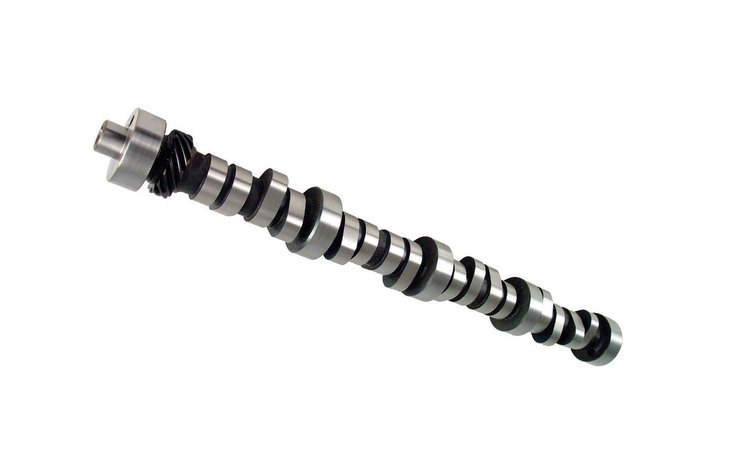

Comp Cams Xtreme Energy Hydraulic Roller Camshafts
$46236$577.95You Save$115.59
1 left in stock
Ships Tomorrow
Lowest Price GuaranteeFord 5.0L 8 cyl. 1982-2002Computer Controlled (EFI) for engines originally equipped with hydraulic roller camshaft. (WITH 1.7 ROCKERS)
- Xtreme Energy XE276HR Hydraulic Roller Camshaft
Lift: .544"/.544"
Duration: 276°/282°
Lobe Separation Angle: 112°
RPM Range: 2200-6200
Hydraulic Roller-For use with 1.7:1 rockers. Major modifications, 3.55 gear or lower, 2500 stall.
Ford; SBF; Mustang; Windsor; Fairlane; Meteor; Mercury; GT; 22; 260; Sunbeam; Tiger; 289; 302; 351; 289; HiPo; K-Code; GT-350; Shelby; Boss; 5.0; 308; Windsor; Torino; Cougar; F-150; Squire; Thunderbird; LTD; Galaxie; Grand Marquis
For use with 1.7:1 rockers. Major modifications, 3.55 gear or lower, 2500+ stall.
Emissions Note:
This part is only legal for sale and use on Uncontrolled (Non-Emissions Controlled) Vehicles or on vehicles used solely for the purposes of closed competition racing.
CLICK THIS LINK FOR IMPORTANT CARB & EPA EMISSIONS INFORMATION ABOUT THIS PART
Part TypeCamshaft
BrandCOMP CAMS
Package Height3.0
Package Width3.0
Package Length24.3
Weight9.7 PG
Part CategoryPerformance Parts
Exh. Duration @ .050 In. (Deg)230
Cam StyleHydraulic roller tappet
Grind NumberFW XE276HR-12
Exh. Duration Advertised (Deg)282
Engine Make/SizeFord 5.0L/302
Intake Valve Lift With Factory Rocker Arm Ratio (I0.544
Int. Duration @ .050 In. (Deg)224
Basic Operating Rpm Range2,200-6,200
Intake Valve Lift0.544 in (13.818 mm)
Computer-Controlled CompatibleYes
Int. Duration Advertised (Deg)276
Lobe Separation (Deg)112
Rpm Range2200-6200
Advertised Duration276 int./282 exh.
Exhaust Valve Lift With Factory Rocker Arm Ratio (0.544
UsageStreet/Performance
Valve Lift With Factory Rocker Arm Ratio0.544 int./0.544 exh.
QuantitySold individually
Exhaust Valve Lift0.544 in (13.818 mm)
Advertised Intake Duration276
Intake Duration At 050 Inch Lift224
Exhaust Duration At 050 Inch Lift230
Advertised Exhaust Duration282
Lifter TypeHydraulic Roller
Duration At 050 Inch Lift224 int./230 exh.
Valve Springs RequiredYes
Vendor Part Number35-328-8
Package Qty1
Package TypeEA
