Vehicle Info NeededCOMP CAMSPART NUMBER: 249-35-410-8

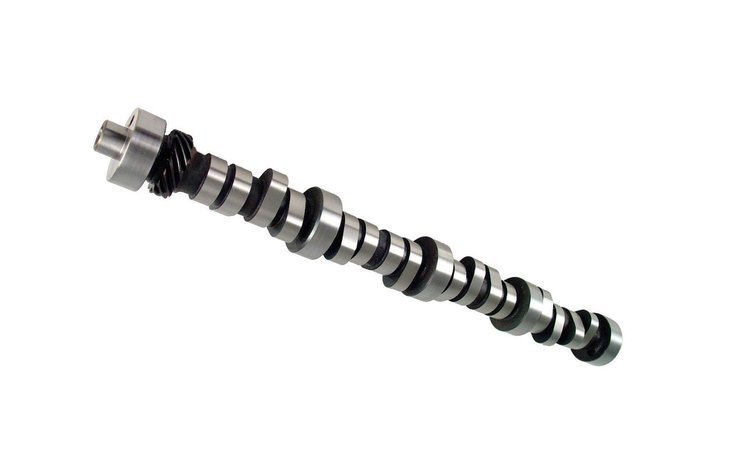

Magnum Hydraulic Roller Camshaft Ford 5.0L 1985-95 Factory Roller Carburetor Only Lift: .533"/.533"
$57795
Ships on 09/15/2026
Lowest Price GuaranteeFord 5.0L 1985-95 Factory RollerCarburetor Only
- Magnum Hydraulic Roller Camshaft
- Lift: .533"/.533"
- Duration: 260°/260°
- Lobe Separation Angle: 110°
- RPM Range: 1200-4500
- Cams Are Very Aggressive
- Designed For Performance Oriented Vehicles
- Deliver More Power Than Standard Camshafts
- 1 Year Limited Warranty
Ford, 351W, Windsor, 351 Windsor, 302, 5.0 HO, Explorer, Mutang, Ford Mustang, 408, 347, Fox Body Mustang, Fox Body, 302 HO, Cougar, F100, F150
Best with stock or slightly modified engine for economy or towing. Stock gears and torque converter. Smooth idle.
Ford 5.0L 1985-95 Factory Roller
Carburetor Only
Emissions Note:
This part is only legal for sale and use on Uncontrolled (Non-Emissions Controlled) Vehicles or on vehicles used solely for the purposes of closed competition racing.
CLICK THIS LINK FOR IMPORTANT CARB & EPA EMISSIONS INFORMATION ABOUT THIS PART
Part TypeCamshaft
BrandCOMP CAMS
Package Height2.8
Package Width3.2
Package Length24.3
Weight9.65 PG
Part CategoryPerformance Parts
Exh. Duration @ .050 In. (Deg)206
Cam StyleHydraulic roller tappet
Grind NumberFW 260H-R10
Exh. Duration Advertised (Deg)260
Engine Make/SizeFord 5.0L/302
Intake Valve Lift With Factory Rocker Arm Ratio (I0.533
Int. Duration @ .050 In. (Deg)206
Basic Operating Rpm Range1,200-4,500
Intake Valve Lift0.533 in (13.538 mm)
Computer-Controlled CompatibleNo
Int. Duration Advertised (Deg)260
Lobe Separation (Deg)110
Rpm Range1200-4500
Advertised Duration260 int./260 exh.
Exhaust Valve Lift With Factory Rocker Arm Ratio (0.533
UsageStreet/Strip
Valve Lift With Factory Rocker Arm Ratio0.533 int./0.533 exh.
QuantitySold individually
Exhaust Valve Lift0.533 in (13.538 mm)
Advertised Intake Duration260
Intake Duration At 050 Inch Lift206
Exhaust Duration At 050 Inch Lift206
Advertised Exhaust Duration260
Lifter TypeHydraulic Roller
Part FitmentSemi Universal
Duration At 050 Inch Lift206 int./206 exh.
Valve Springs RequiredYes
Vendor Part Number35-410-8
Package Qty1
Package TypeEA
