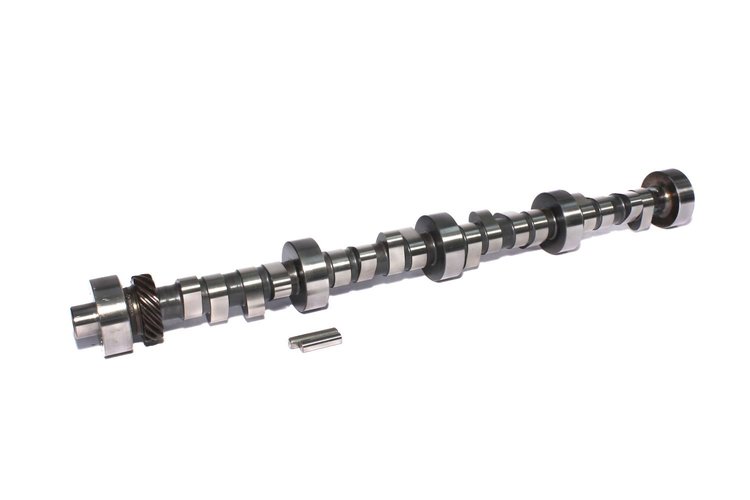

Magnum Hydraulic Roller Camshaft Ford 351W 1969-1995 Retro Fit Lift: .533"/.533"
InfoVehicle Info Needed
COMP CAMSPART NUMBER: 249-35-442-8

Magnum Hydraulic Roller Camshaft Ford 351W 1969-1995 Retro Fit Lift: .533"/.533"

$52295
ShippingShips on 09/16/2026
Lowest PriceLowest Price Guarantee

Ford 351W 1969-1995
  • Retro-Fit Non-EFI
    • Magnum Hydraulic Roller Camshaft
      Ford 351W 1969-1995 Retro Fit
    • Lift: .533"/.533"
    • Duration: 284°/284°
    • Lobe Separation Angle: 110°
    • RPM Range: 2000-5500

    • For engines that DID NOT come from the factory with hydraulic roller cams, NOT FOR E.F.I.
    • Cams Are Very Aggressive
    • Designed For Performance Oriented Vehicles
    • Deliver More Power Than Standard Camshafts
    • 1 Year Limited Warranty

      Ford, 351W, Windsor, 351 Windsor, 302, 5.0 HO, Explorer, Mutang, Ford Mustang, 408, 347, Fox Body Mustang, Fox Body, 302 HO, Cougar, F100, F150


      Great for street machines. Best power above 3500 RPM with good torque. Mild rough idle. Largest for stock heads and intake.

    Emissions Note:

    This part is only legal for sale and use on Uncontrolled (Non-Emissions Controlled) Vehicles or on vehicles used solely for the purposes of closed competition racing.

    CLICK THIS LINK FOR IMPORTANT CARB & EPA EMISSIONS INFORMATION ABOUT THIS PART

    Part TypeCamshaft
    BrandCOMP CAMS
    Package Height2.9
    Package Width3.0
    Package Length24.2
    Weight7.85 PG
    Part CategoryPerformance Parts
    Exh. Duration @ .050 In. (Deg)224
    Cam StyleHydraulic roller tappet
    Grind NumberFW 284RF-HR10
    Exh. Duration Advertised (Deg)284
    Engine Make/SizeFord 351W
    Intake Valve Lift With Factory Rocker Arm Ratio (I0.533
    Int. Duration @ .050 In. (Deg)224
    Basic Operating Rpm Range2,000-5,500
    Intake Valve Lift0.533 in (13.538 mm)
    Computer-Controlled CompatibleNo
    Int. Duration Advertised (Deg)284
    Lobe Separation (Deg)110
    Rpm Range2000-5500
    Advertised Duration284 int./284 exh.
    Exhaust Valve Lift With Factory Rocker Arm Ratio (0.533
    UsageStreet/Strip
    Valve Lift With Factory Rocker Arm Ratio0.533 int./0.533 exh.
    QuantitySold individually
    Exhaust Valve Lift0.533 in (13.538 mm)
    Advertised Intake Duration284
    Intake Duration At 050 Inch Lift224
    Exhaust Duration At 050 Inch Lift224
    Advertised Exhaust Duration284
    Lifter TypeHydraulic Roller
    Part FitmentSemi Universal
    Duration At 050 Inch Lift224 int./224 exh.
    Valve Springs RequiredYes
    Vendor Part Number35-442-8
    Package Qty1
    Package TypeEA
