COMP CAMSPART NUMBER: 249-35-452-8

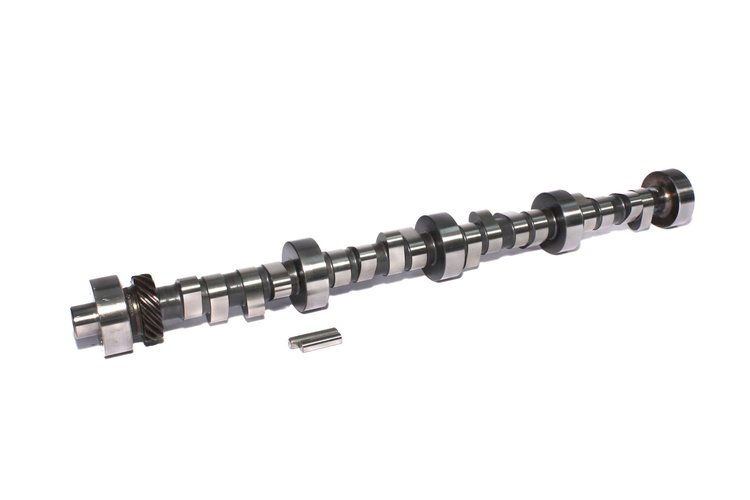

Magnum Hydraulic Roller Camshaft Ford 351W 1969-1995 Retro Fit Lift: .544"/.544"
$52295
Ford 351W 1969-1995Retro-Fit Non-EFI
- Magnum Hydraulic Roller Camshaft
- Lift: .544"/.544"
- Duration: 290°/290°
- Lobe Separation Angle: 110°
- RPM Range: 2500-6000
- For engines that DID NOT come from the factory with hydraulic roller cams, NOT FOR E.F.I.
- Cams Are Very Aggressive
- Designed For Performance Oriented Vehicles
- Deliver More Power Than Standard Camshafts
- 1 Year Limited Warranty
Ford, 351W, Windsor, 351 Windsor, 302, 5.0 HO, Explorer, Mutang, Ford Mustang, 408, 347, Fox Body Mustang, Fox Body, 302 HO, Cougar, F100, F150
Street machine and limited high performance street use. Best with 4 speed or 2800+ stall and 3.40 to 4.10 gears, aftermarket intake and headers.
Ford 351W 1969-1995 Retro Fit
Emissions Note:
This part is only legal for sale and use on Uncontrolled (Non-Emissions Controlled) Vehicles or on vehicles used solely for the purposes of closed competition racing.
CLICK THIS LINK FOR IMPORTANT CARB & EPA EMISSIONS INFORMATION ABOUT THIS PART
Part TypeCamshaft
BrandCOMP CAMS
Package Height2.75
Package Width2.87
Package Length24.5
Weight7.75 PG
Part CategoryPerformance Parts
Exh. Duration @ .050 In. (Deg)230
Cam StyleHydraulic roller tappet
Grind NumberFW 290RF-HR10
Exh. Duration Advertised (Deg)290
Engine Make/SizeFord 351W
Intake Valve Lift With Factory Rocker Arm Ratio (I0.544
Int. Duration @ .050 In. (Deg)230
Basic Operating Rpm Range2,500-6,000
Intake Valve Lift0.544 in (13.818 mm)
Computer-Controlled CompatibleNo
Int. Duration Advertised (Deg)290
Lobe Separation (Deg)110
Rpm Range2500-6000
Advertised Duration290 int./290 exh.
Exhaust Valve Lift With Factory Rocker Arm Ratio (0.544
UsageStreet/Strip
Valve Lift With Factory Rocker Arm Ratio0.544 int./0.544 exh.
QuantitySold individually
Exhaust Valve Lift0.544 in (13.818 mm)
Advertised Intake Duration290
Intake Duration At 050 Inch Lift230
Exhaust Duration At 050 Inch Lift230
Advertised Exhaust Duration290
Lifter TypeHydraulic Roller
Part FitmentSemi Universal
Duration At 050 Inch Lift230 int./230 exh.
Valve Springs RequiredYes
Vendor Part Number35-452-8
Package Qty1
Package TypeEA
