Vehicle Info NeededCOMP CAMSPART NUMBER: 249-35-635-5

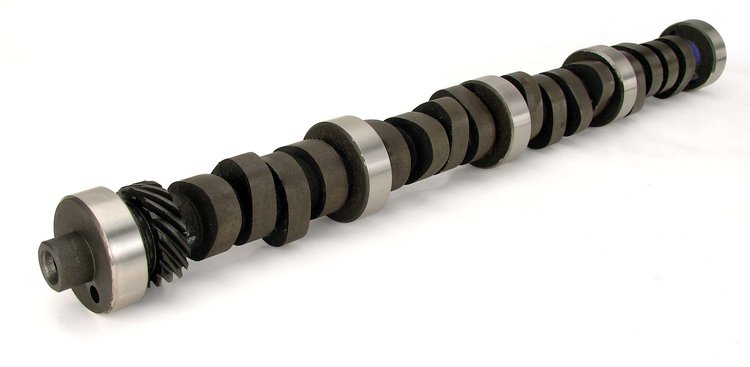

Comp Cams Oval Track Camshafts
$32595
Ships on 09/08/2026
Lowest Price GuaranteeFord 351W 1969-1996Low Lift Hydraulic
- Low Lift Oval Track Hydraulic Flat Camshaft
Ford 351W 1969-1996
Lift: .448"/.448"
Duration: 297°/299°
Lobe Separation Angle: 106°
RPM Range: 3000-6500
.450" lift rule. Rough idle, under 10" of vacuum. Good power.
Ford, 351W, Windsor, 351 Windsor, 302, 5.0 HO, Explorer, Mutang, Ford Mustang, 408, 347, Fox Body Mustang, Fox Body, 302 HO, Cougar, F100, F150
.450" lift rule. Rough idle, under 10" of vacuum. Good power.
Emissions Note:
This part is only legal for sale and use on Uncontrolled (Non-Emissions Controlled) Vehicles or on vehicles used solely for the purposes of closed competition racing.
CLICK THIS LINK FOR IMPORTANT CARB & EPA EMISSIONS INFORMATION ABOUT THIS PART
Part TypeCamshaft
BrandCOMP CAMS
Package Height2.75
Package Width3.0
Package Length24.5
Weight9.68 PG
Part CategoryPerformance Parts
Exh. Duration @ .050 In. (Deg)250
Cam StyleHydraulic flat tappet
Grind Number41/15H-6
Exh. Duration Advertised (Deg)299
Engine Make/SizeFord 351W
Intake Valve Lift With Factory Rocker Arm Ratio (I0.448
Int. Duration @ .050 In. (Deg)246
Basic Operating Rpm Range3,000-6,500
Intake Valve Lift0.448 in (11.379 mm)
Computer-Controlled CompatibleNo
Int. Duration Advertised (Deg)297
Lobe Separation (Deg)106
Rpm Range3000-6500
Advertised Duration297 int./299 exh.
Exhaust Valve Lift With Factory Rocker Arm Ratio (0.448
UsageStrip
Valve Lift With Factory Rocker Arm Ratio0.448 int./0.448 exh.
QuantitySold individually
Exhaust Valve Lift0.448 in (11.379 mm)
Advertised Intake Duration297
Intake Duration At 050 Inch Lift246
Exhaust Duration At 050 Inch Lift250
Advertised Exhaust Duration299
Lifter TypeHydraulic Flat Tappet
Part FitmentSemi Universal
Duration At 050 Inch Lift246 int./250 exh.
Valve Springs RequiredYes
Vendor Part Number35-635-5
Package Qty1
Package TypeEA
