Vehicle Info NeededCOMP CAMSPART NUMBER: 249-35-637-5

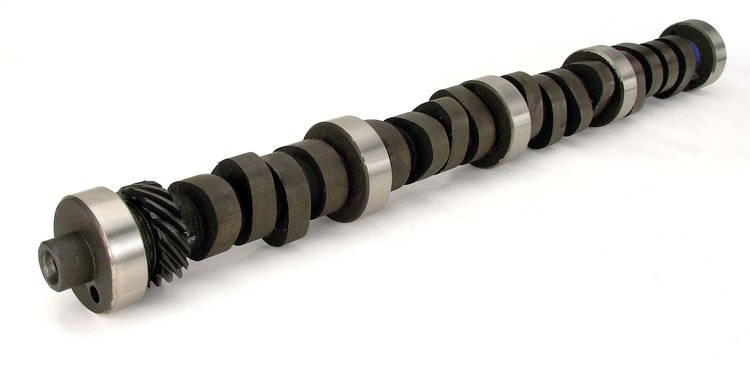

Comp Cams Oval Track Camshafts
$32595
Ships on 09/08/2026
Lowest Price GuaranteeFord 351W 1969-1996 Low Lift Mechanical
- low lift Oval Track Mechanical Flat Tappet Camshaft
Ford 351W 1969-1996
Lift: .504"/.504"
Duration: 270°/282°
Lobe Separation Angle: 106°
RPM Range: 3000-6500
.500" lift rule. Under 10" of vacuum with rough idle. Very good power.
Ford, 351W, Windsor, 351 Windsor, 302, 5.0 HO, Explorer, Mutang, Ford Mustang, 408, 347, Fox Body Mustang, Fox Body, 302 HO, Cougar, F100, F150
.500" lift rule. Under 10" of vacuum with rough idle. Very good power.
Emissions Note:
This part is only legal for sale and use on Uncontrolled (Non-Emissions Controlled) Vehicles or on vehicles used solely for the purposes of closed competition racing.
CLICK THIS LINK FOR IMPORTANT CARB & EPA EMISSIONS INFORMATION ABOUT THIS PART
Part TypeCamshaft
BrandCOMP CAMS
Package Height3.1
Package Width3.4
Package Length24.4
Weight9.7 PG
Part CategoryPerformance Parts
Exh. Duration @ .050 In. (Deg)250
Cam StyleMechanical flat tappet
Grind NumberFW 270LS-6
Exh. Duration Advertised (Deg)282
Engine Make/SizeFord 351W
Intake Valve Lift With Factory Rocker Arm Ratio (I0.504
Int. Duration @ .050 In. (Deg)242
Basic Operating Rpm Range3,000-6,500
Intake Valve Lash0.02 in (0.508 mm)
Intake Valve Lift0.504 in (12.802 mm)
Computer-Controlled CompatibleNo
Int. Duration Advertised (Deg)270
Lobe Separation (Deg)106
Rpm Range3000-6500
Advertised Duration270 int./282 exh.
Exhaust Valve Lift With Factory Rocker Arm Ratio (0.504
UsageStrip
Valve Lift With Factory Rocker Arm Ratio0.504 int./0.504 exh.
QuantitySold individually
Exhaust Valve Lash0.022 in (0.559 mm)
Exhaust Valve Lift0.504 in (12.802 mm)
Advertised Intake Duration270
Intake Duration At 050 Inch Lift242
Exhaust Duration At 050 Inch Lift250
Advertised Exhaust Duration282
Lifter TypeMechanical Flat Tappet
Part FitmentSemi Universal
Duration At 050 Inch Lift242 int./250 exh.
Valve Springs RequiredYes
Vendor Part Number35-637-5
Package Qty1
Package TypeEA
