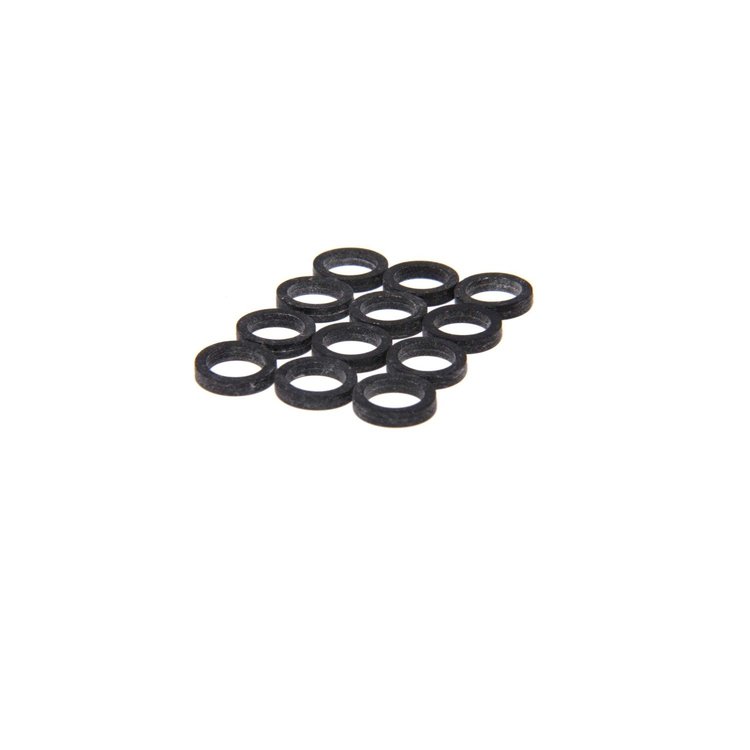

O-Rings Guide Size: Stock
Product Discontinued
COMP CAMSPART NUMBER: 249-501-12

O-Rings Guide Size: Stock

Currently Unavailable

This product is no longer available. Please call customer service for assistance at 1-800-345-4545.

O-Rings
    O-Rings
  • Guide Size: Stock
  • Valve Size: 11/32''
  • 12/pkg

  • O-Ring
  • 1 Year Limited Warranty

    PTFE; Seal; Valve Guide; Valve Guide Seal; Valve Stem Seal; Valve Seals; 5/16" Valve Seals; 11/32" Valve Seals; .530" Valve Seal; Umbrella; O-Ring Seals; Viton Seals; 8 mm Seals

Comp Cams offers a complete line of valve stem seals, from the stock GM O-ring to the positive stop PTFE seal. These seals are a must to keep unwanted oil from entering the combustion chamber through the clearance in the valve guides. O-ring seals use the standard retainer and oil splash shield. Umbrella seals are normally used when a larger-than-stock diameter spring is used; in the case of a double spring, positive stop PTFE seals are used. There is also a smaller diameter Viton seal available for triple spring applications. O-rings and umbrella seals require no machining, but PTFE seals require the heads to be disassembled so the top guides can be machined with a special .530" diameter cutter. Whenever you're planning an overhaul or cam change, don't forget the valve seals!

Show More

Features:

  • Excellent Sealing Properties
  • O-Ring & Umbrella Seals Require No Machining
Part TypeValve Stem Seal
Product LineComp Cams Valve Stem Seals
BrandCOMP CAMS
Package Height1.5
Package Width3.62
Package Length6.5
Weight0.2 PG
Part CategoryPerformance Parts
Valve Stem Seal TypeO-ring
Machine Work RequiredNo
Valve Stem Seal MaterialRubber
QuantitySold as a set of 12
Valve Stem Diameter0.344 in (8.7 mm)
Diameter0.344 in (8.738 mm)
Vendor Part Number501-12
Package Qty1
Package TypeEA
