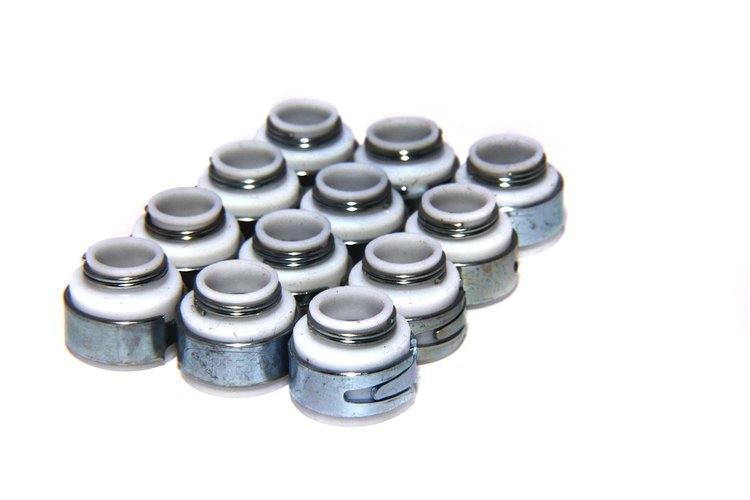

Positive Stop PTFE Seal Guide Size: .530"
Product Discontinued
COMP CAMSPART NUMBER: 249-505-12

Positive Stop PTFE Seal Guide Size: .530"

Currently Unavailable

This product is no longer available. Please call customer service for assistance at 1-800-345-4545.

Positive Stop PTFE Seals
    Positive Stop PTFE Seal
  • Guide Size: .530''
  • Valve Size: 3/8''
  • 12/pkg

    PTFE; Seal; Valve Guide; Valve Guide Seal; Valve Stem Seal; Valve Seals; 5/16" Valve Seals; 11/32" Valve Seals; .530" Valve Seal; Umbrella; O-Ring Seals; Viton Seals; 8 mm Seals


    COMP's Positive Stop PTFE valve seals offer more clearance for dual springs with better sealing than o-ring or umbrella seals. These 505 seals have a .630" outer diameter and fit applications with 3/8" valves and .530" OD valve guides.

Comp Cams offers a complete line of valve stem seals, from the stock GM O-ring to the positive stop PTFE seal. These seals are a must to keep unwanted oil from entering the combustion chamber through the clearance in the valve guides. O-ring seals use the standard retainer and oil splash shield. Umbrella seals are normally used when a larger-than-stock diameter spring is used; in the case of a double spring, positive stop PTFE seals are used. There is also a smaller diameter Viton seal available for triple spring applications. O-rings and umbrella seals require no machining, but PTFE seals require the heads to be disassembled so the top guides can be machined with a special .530" diameter cutter. Whenever you're planning an overhaul or cam change, don't forget the valve seals!

Show More

Features:

  • Excellent Sealing Properties
  • O-Ring & Umbrella Seals Require No Machining
Part TypeValve Stem Seal
Product LineComp Cams Valve Stem Seals
BrandCOMP CAMS
Package Height0.5
Package Width4.0
Package Length6.0
Weight0.23 PG
Part CategoryPerformance Parts
Valve Guide Diameter0.53 in (13.5 mm)
Valve Stem Seal TypePositive stop
Machine Work RequiredYes
Valve Stem Seal MaterialPTFE
QuantitySold as a set of 12
Valve Stem Diameter0.375 in (9.5 mm)
Part FitmentSemi Universal
Diameter0.375 in (9.525 mm)
Vendor Part Number505-12
Package Qty1
Package TypeEA
