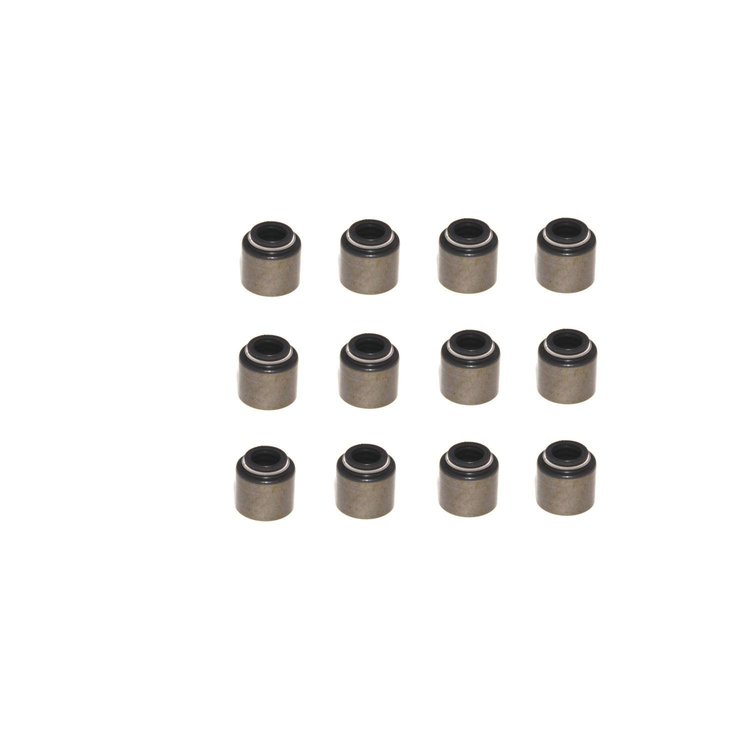

Viton Valve Seals Guide Size: .500"
InfoVehicle Info Needed
COMP CAMSPART NUMBER: 249-511-12

Viton Valve Seals Guide Size: .500"

$4495
ShippingShips on 09/08/2026
Lowest PriceLowest Price Guarantee

Viton Valve Seals
    Viton Valve Seals
  • Guide Size: .500''
  • Valve Size: 8mm
  • LS1 (Steel Body)
  • 12/pkg

    PTFE; Seal; Valve Guide; Valve Guide Seal; Valve Stem Seal; Valve Seals; 5/16" Valve Seals; 11/32" Valve Seals; .530" Valve Seal; Umbrella; O-Ring Seals; Viton Seals; 8 mm Seals


    Providing the best sealing properties and spring clearance, viton valve seals are an excellent choice in performance applications. The 511 seals have a .600" OD and fit LS applications with 8mm valves and .500" OD guides.

Comp Cams offers a complete line of valve stem seals, from the stock GM O-ring to the positive stop PTFE seal. These seals are a must to keep unwanted oil from entering the combustion chamber through the clearance in the valve guides. O-ring seals use the standard retainer and oil splash shield. Umbrella seals are normally used when a larger-than-stock diameter spring is used; in the case of a double spring, positive stop PTFE seals are used. There is also a smaller diameter Viton seal available for triple spring applications. O-rings and umbrella seals require no machining, but PTFE seals require the heads to be disassembled so the top guides can be machined with a special .530" diameter cutter. Whenever you're planning an overhaul or cam change, don't forget the valve seals!

Show More

Features:

  • Excellent Sealing Properties
  • O-Ring & Umbrella Seals Require No Machining
Part TypeValve Stem Seal
Product LineComp Cams Valve Stem Seals
BrandCOMP CAMS
Package Height0.5
Package Width4.0
Package Length6.0
Weight0.16 PG
Part CategoryPerformance Parts
Part FitmentSemi Universal
DiameterOEM
Vendor Part Number511-12
Package Qty1
Package TypeEA
