Vehicle Info NeededCOMP CAMSPART NUMBER: 249-61-233-4

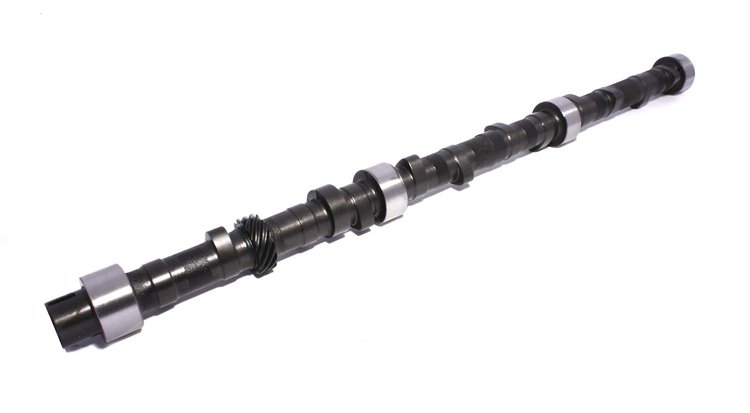

High Energy 260H Hydraulic Flat Tappet Camshaft Lift: .489" /.489" Duration: 260°/260° RPM Range: 1000-5000
$36795
Ships on Sep 03, 2026
Lowest Price GuaranteeChevy 194-250ci 6-cyl 1963-1984
- High Energy 260H Hydraulic Flat Tappet Camshaft
- High Torque Cams
- For Street Applications w/Lower Compression Ratios
- Can Be Used w/Most Stock Components
- 1 Year Limited Warranty
Chevrolet V6, 194, Chevrolet, 250
Best for towing, off-road and 4WD trucks. Noticeable idle. Good for highway driving.
Lift: .489''/.489"
Duration: 260°/260°
RPM Range: 1000-5000
Emissions Note:
This part is only legal for sale and use on Uncontrolled (Non-Emissions Controlled) Vehicles or on vehicles used solely for the purposes of closed competition racing.
CLICK THIS LINK FOR IMPORTANT CARB & EPA EMISSIONS INFORMATION ABOUT THIS PART
Part TypeCamshaft
BrandCOMP CAMS
Package Height2.7
Package Width2.9
Package Length30.9
Weight11.64 PG
Part CategoryPerformance Parts
Exh. Duration @ .050 In. (Deg)212
Cam StyleHydraulic flat tappet
Grind NumberC61 260H-10
Exh. Duration Advertised (Deg)260
Engine Make/SizeChevy 194-250
Intake Valve Lift With Factory Rocker Arm Ratio (I0.489
Int. Duration @ .050 In. (Deg)212
Basic Operating Rpm Range1,000-5,000
Intake Valve Lift0.489 in (12.421 mm)
Computer-Controlled CompatibleNo
Int. Duration Advertised (Deg)260
Lobe Separation (Deg)110
Rpm Range1000-5000
Advertised Duration260 int./260 exh.
Exhaust Valve Lift With Factory Rocker Arm Ratio (0.489
UsageStreet/Performance
Valve Lift With Factory Rocker Arm Ratio0.489 int./0.489 exh.
Camshaft Gear Attachment3-bolt
QuantitySold individually
Exhaust Valve Lift0.489 in (12.421 mm)
Advertised Intake Duration260
Intake Duration At 050 Inch Lift212
Exhaust Duration At 050 Inch Lift212
Advertised Exhaust Duration260
Lifter TypeHydraulic Flat Tappet
Part FitmentSemi Universal
Duration At 050 Inch Lift212 int./212 exh.
Valve Springs RequiredNo
Vendor Part Number61-233-4
Package Qty1
Package TypeEA
