Vehicle Info NeededCOMP CAMSPART NUMBER: 249-61-238-5

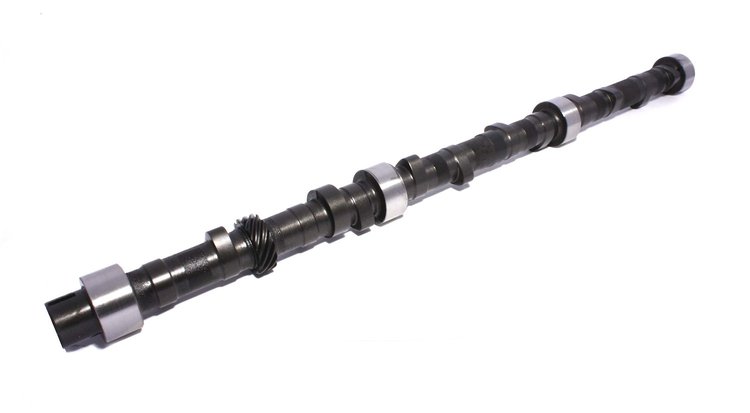

Hi-Tech Mechanical Flat Tappet Camshaft Lift .513"/.513" Duration 264/264 RPM Range 1500-5500
$32595
Ships on 09/15/2026
Lowest Price GuaranteeChevrolet 194-250 c.i. 6 CYL. 1963-1984
- Hi-Tech Mechanical Flat Tappet Camshaft
- Good For Mini Stock w/Stock Engine/Solid Lifters
- 1 Year Limited Warranty
Chevrolet V6, 194, Chevrolet, 250
Good for mini-stock with stock engine, when solid lifters can be used.
Lift .513"/.513"
Duration 264/264
RPM Range 1500-5500
Emissions Note:
This part is only legal for sale and use on Uncontrolled (Non-Emissions Controlled) Vehicles or on vehicles used solely for the purposes of closed competition racing.
CLICK THIS LINK FOR IMPORTANT CARB & EPA EMISSIONS INFORMATION ABOUT THIS PART
Part TypeCamshaft
BrandCOMP CAMS
Package Height2.8
Package Width3.0
Package Length30.8
Weight11.05 PG
Part CategoryPerformance Parts
Exh. Duration @ .050 In. (Deg)220
Cam StyleMechanical flat tappet
Grind Number264S-8
Exh. Duration Advertised (Deg)264-1
Engine Make/SizeChevy 194-250
Intake Valve Lift With Factory Rocker Arm Ratio (I0.439
Int. Duration @ .050 In. (Deg)220
Basic Operating Rpm Range1,500-5,500
Intake Valve Lash0.022 in (0.559 mm)
Intake Valve Lift0.439 in (11.151 mm)
Computer-Controlled CompatibleNo
Int. Duration Advertised (Deg)264-1
Lobe Separation (Deg)108
Rpm Range1500-5500
Advertised Duration264 int./264 exh.
Exhaust Valve Lift With Factory Rocker Arm Ratio (0.439
UsageStrip
Valve Lift With Factory Rocker Arm Ratio0.439 int./0.439 exh.
Camshaft Gear AttachmentNone
QuantitySold individually
Exhaust Valve Lash0.024 in (0.61 mm)
Exhaust Valve Lift0.439 in (11.151 mm)
Advertised Intake Duration264
Intake Duration At 050 Inch Lift220
Exhaust Duration At 050 Inch Lift220
Advertised Exhaust Duration264
Lifter TypeMechanical Flat Tappet
Part FitmentSemi Universal
Duration At 050 Inch Lift220 int./220 exh.
Valve Springs RequiredYes
Vendor Part Number61-238-5
Package Qty1
Package TypeEA
