Vehicle Info NeededCOMP CAMSPART NUMBER: 249-61-244-4

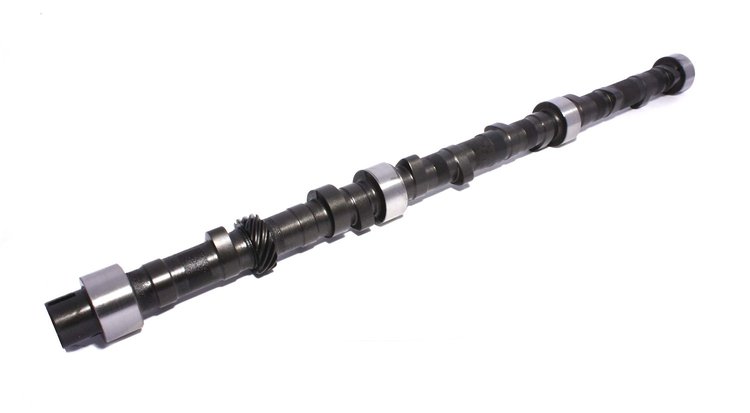

Magnum 268H Hydraulic Flat Tappet Camshaft Lift: .499" /.499" Duration: 268°/268° RPM Range: 1200-5200
$36795
Ships on 09/15/2026
Lowest Price GuaranteeChevy 194-250ci 6-cyl 1963-1984
- Magnum 268H Hydraulic Flat Tappet Camshaft
Lift: .499''/.499"
Duration: 268°/268°
RPM Range: 1200-5200
Good street performance with stock converter, choppy idle.
| Operating Range: | 1200-5200 RPM |
| Duration Advertised: | 268° Intake / 268° Exhaust |
| Duration @ .050' Lift: | 218° Intake / 218° Exhaust |
| Lobe Lift: | .286' Intake / .286' Exhaust |
| Lobe Separation Angle: | 110° |
Chevrolet V6, 194, Chevrolet, 250
Good street performance with stock converter or 2000+ stall, choppy idle.
Emissions Note:
This part is only legal for sale and use on Uncontrolled (Non-Emissions Controlled) Vehicles or on vehicles used solely for the purposes of closed competition racing.
CLICK THIS LINK FOR IMPORTANT CARB & EPA EMISSIONS INFORMATION ABOUT THIS PART
Part TypeCamshaft
BrandCOMP CAMS
Package Height2.8
Package Width3.0
Package Length30.9
Weight11.45 PG
Part CategoryPerformance Parts
Exh. Duration @ .050 In. (Deg)218
Cam StyleHydraulic flat tappet
Grind Number268H
Exh. Duration Advertised (Deg)268
Engine Make/SizeChevy 194-250
Intake Valve Lift With Factory Rocker Arm Ratio (I0.499
Int. Duration @ .050 In. (Deg)218
Basic Operating Rpm Range1,200-5,200
Intake Valve Lift0.499 in (12.675 mm)
Computer-Controlled CompatibleNo
Int. Duration Advertised (Deg)268
Lobe Separation (Deg)110
Rpm Range1200-5200
Advertised Duration268 int./268 exh.
Exhaust Valve Lift With Factory Rocker Arm Ratio (0.499
UsageStreet/Strip
Valve Lift With Factory Rocker Arm Ratio0.499 int./0.499 exh.
QuantitySold individually
Exhaust Valve Lift0.499 in (12.675 mm)
Advertised Intake Duration268
Intake Duration At 050 Inch Lift218
Exhaust Duration At 050 Inch Lift218
Advertised Exhaust Duration268
Lifter TypeHydraulic Flat Tappet
Part FitmentSemi Universal
Duration At 050 Inch Lift218 int./218 exh.
Valve Springs RequiredYes
Vendor Part Number61-244-4
Package Qty1
Package TypeEA
