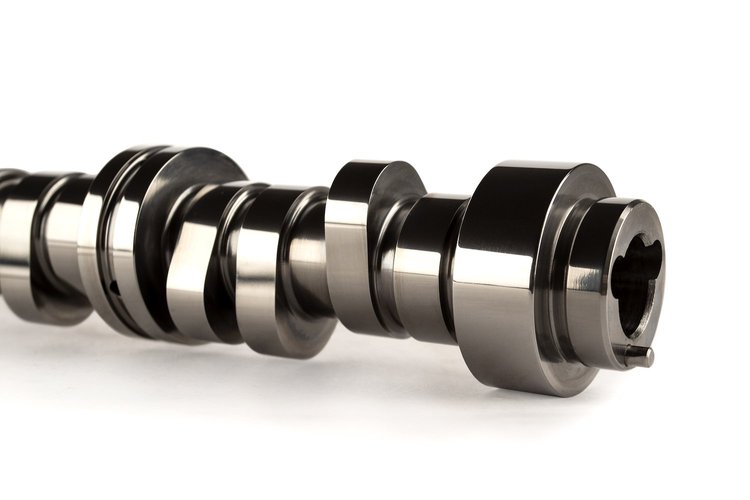

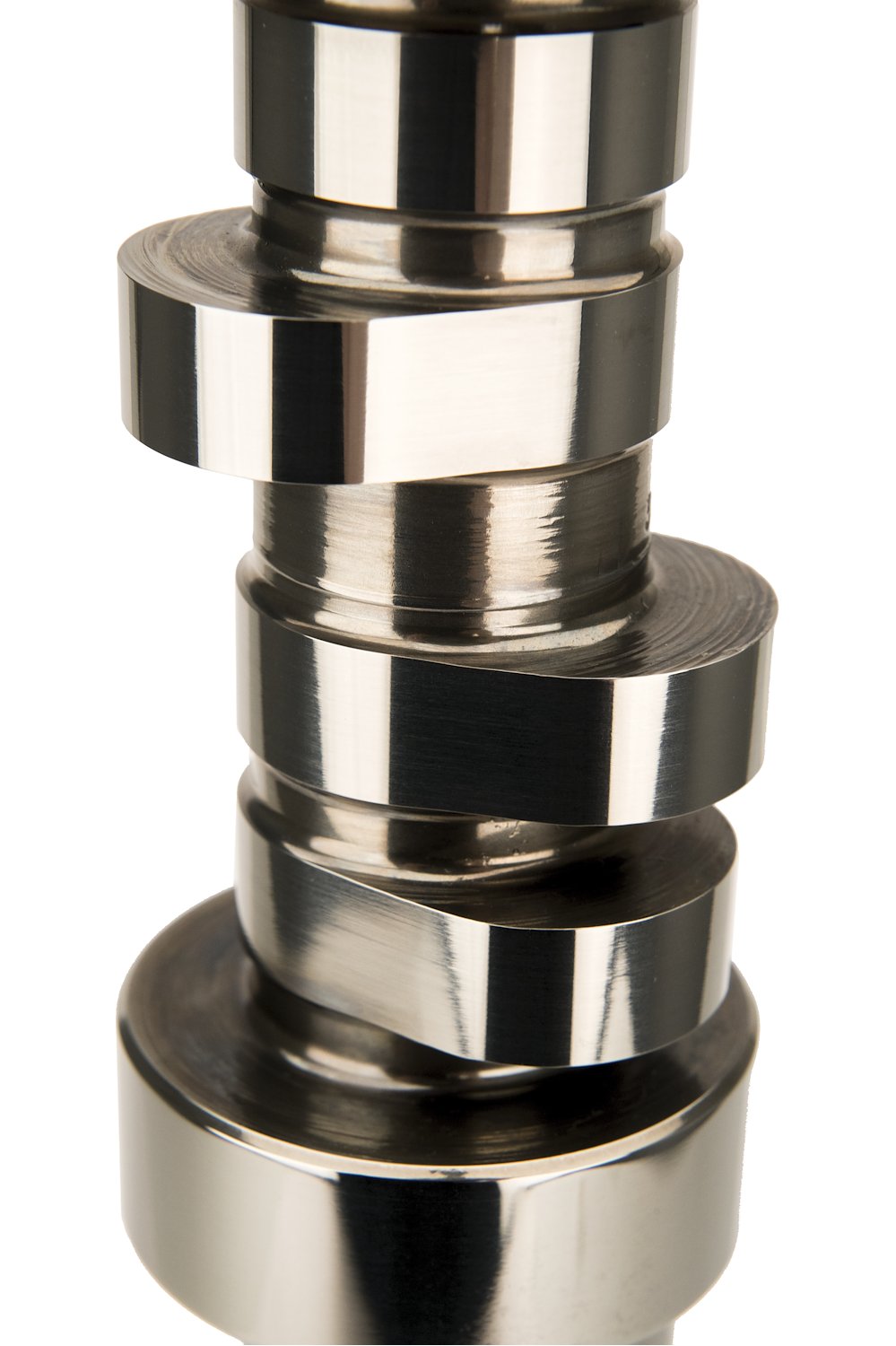

COMP Cams 689-200-13 Hydraulic Roller Cam:

• Designed for GM Gen IV LS engines equipped with Active Fuel Management (AFM) and Variable Valve Timing (VVT)
• Hydraulic roller design improves power and drivability while maintaining AFM functionality
• Features 208°/220° duration at .050 in. for deactivation cylinders and 206°/218° for non-deactivation cylinders
• Valve lift measures .541 in. intake and .541 in. exhaust
• 117° lobe separation angle provides smooth idle and strong mid-range torque
• Operating range from 1,600–6,800 rpm for broad powerband performance
• Single-bolt camshaft core fits factory LS timing gear setup
• Provides up to 30+ horsepower gain with stock components and stock tune

COMP Cams 689-200-13 Hydraulic Roller Cam Notes:

• Compatible with factory AFM/VVT systems and OE valve springs in most applications
• Recommended for 2007–2015 GM Gen IV 5.3L and 6.0L engines using AFM technology
• Requires ECU tuning for optimal performance and drivability
• Not intended for engines with AFM delete kits

Emissions Note:

This part is legal for sale and use on Emissions Controlled Vehicles, in all 50 states, when used in accordance with the manufacturer's application guide because it has California Air Resources Board (CARB) Executive Order (EO) #D-279-13
