COMP CAMSPART NUMBER: 249-7228-16

Conical Valve Springs Rate: 438 lbs

Name: Conical Valve Springs Rate: 438 lbs
Brand: COMP CAMS
SKU: 249-7228-16
Price: 376.95 USD
Availability: InStock

^$376⁹⁵

4 left in stock

Ships on Sep 08, 2026

Lowest Price Guarantee

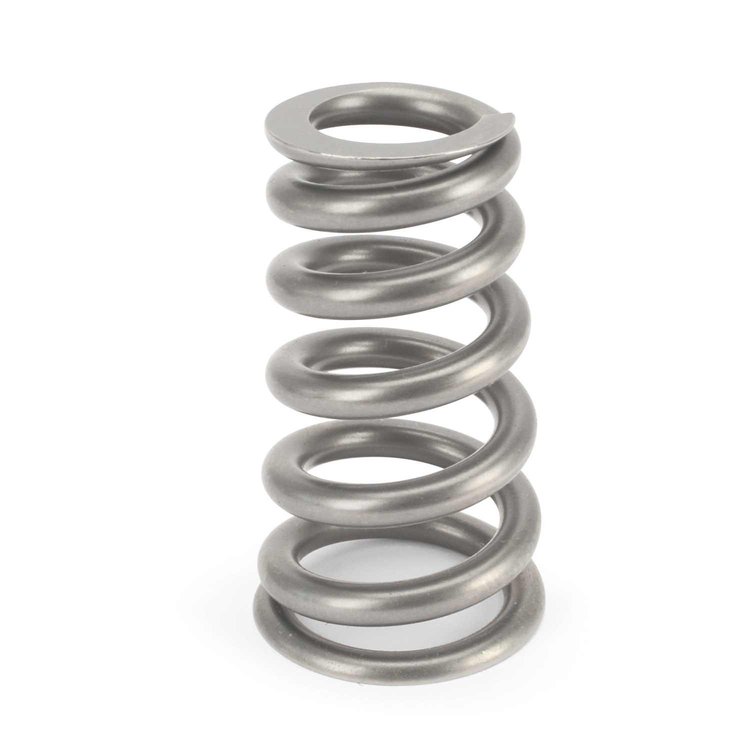

Conical Valve Springs

Rate: 438 lbs
Inner Diameter: .650'' Top, .920'' Bottom
Outer Diameter: 1.020'' Top, 1.290'' Bottom
Seat Load: 136 lbs at 1.800''
Open Load: 412 lbs at 1.170''
Coil Bind Height: 1.125''
16/pkg

Valve Springs; Dual Valve Springs; Single Valve Springs; Beehive Springs; Conical Springs; Valve Lift; Max Lift; Spring Kit

Part TypeValve Spring Kit

BrandCOMP CAMS

Package Height2.5

Package Width2.9

Package Length10.3

Weight2.37 PG

Part CategoryPerformance Parts

CoatedNo

Coil Bind Height1.125 in (28.575 mm)

Damper Spring IncludedNo

Spring Rate438 lbs./in.

PositionN/A

Open Height1.18 in (30 mm)

Open Pressure (Lbs.)410

Installed Pressure (Lbs.)136

QuantitySold as a set of 16

Installed Height1.8 in (45.72 mm)

Valve Spring StyleConical

Outside Diameter Of Outer Spring1.29 in (32.8 mm)

Inside Diameter Of Outer Spring0.92 in (23.368 mm)

Inside DiameterN/A

Spring TypeSingle

Spring Rate (Lbs./In.)438

Part FitmentSemi Universal

Outside DiameterOEM

Number Of Springs Per ValveSingle

Camshaft TypeHydraulic

Vendor Part Number7228-16

Package Qty1

Package TypeEA
