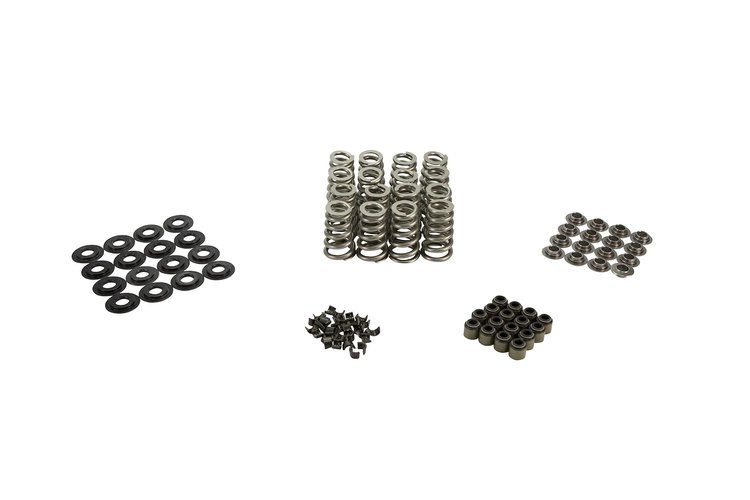

7230TS-KIT Conical Valve Spring Kit for GM LT1 & LS7 [Tool Steel Retainers]
InfoVehicle Info Needed
COMP CAMSPART NUMBER: 249-7230TS-KIT

7230TS-KIT Conical Valve Spring Kit for GM LT1 & LS7 [Tool Steel Retainers]

$73195
ShippingShips on Sep 04, 2026
Lowest PriceLowest Price Guarantee

Conical Valve Springs
Conical Valve Spring Kit
  • Rate: 519 lbs
  • Inner Diameter: .660 in. Top, .932 in. Bottom
  • Outer Diameter: 1.060 in. Top, 1.332 in. Bottom
  • Seat Load: 145 lbs at 1.900 in.
  • Open Load: 495 lbs at 1.225 in.
  • Coil Bind Height: 1.175 in.

    Comp Cams 7230TS-KIT Conical Valve Spring Kit for GM LT1 & LS7 Includes:

    • Conical Valve Springs Rate: 520 lbs - 7230-16
    • 7-degree Lightweight Tool Steel Retainers Valve Spring Diameter: 1.290 in. - 1772-16
    • Machined Steel Race Valve Locks GM Gen III LS1/LS2/LS6 - 623-16
    • Viton Valve Seals Guide Size: .500 in. -  511-16
    • Spring Seats .045 in. x .520 in. - 4680-16

      • High-Performance Conical Valve Springs

      Comp Cams Conical Valve Springs are designed with a progressive pitch-driven natural frequency that increases valve train RPM limits while reducing resonance concerns and decreasing dynamic spring oscillations. This results in longer spring life and the ability to run a more aggressive camshaft.

    Part TypeValve Spring Kit
    Product LineComp Cams Conical Valve Springs
    BrandCOMP CAMS
    Package Height2.75
    Package Width6.55
    Package Length12.1
    Weight3.08 PG
    Part CategoryPerformance Parts
    Inside Diameter Of Outer Spring (In)0.660 in.
    Seat Pressure At Installed Height (Lbs)145 lbs.
    Part FitmentSemi Universal
    Installed Height1.9 in (48.26 mm)
    Vendor Part Number7230TS-KIT
    Package Qty1
    Package TypeEA
