Product Discontinued
Currently Unavailable
This product is no longer available. Please call customer service for assistance at 1-800-345-4545.

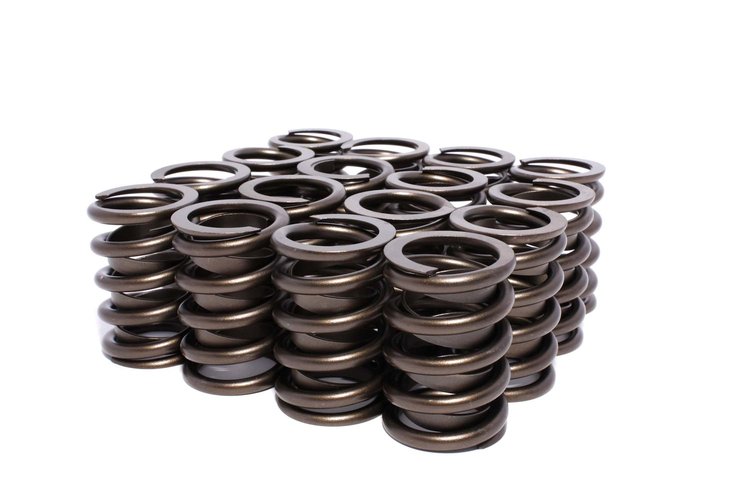

Outer
- Single Outer Valve Springs
- Rate: 387 lbs
- 1.080'' ID, 1.494'' OD
- Seat Load: 104 lbs at 1.650''
- Open Load: 259 lbs at 1.250''
- Coil Bind Height: 1.100''
- With Damper
- 16/pkg
Valve Springs; Dual Valve Springs; Single Valve Springs; Beehive Springs; Conical Springs; Valve Lift; Max Lift; Spring Kit
Engine Valve Spring Kit
Part TypeValve Spring Kit
BrandCOMP CAMS
Package Height2.9
Package Width3.7
Package Length13.6
Weight4.0 PG
Part CategoryPerformance Parts
CoatedNo
Coil Bind Height1.1 in (27.94 mm)
Damper Spring IncludedYes
Spring Rate353 lbs./in.
PositionOuter
Open Height1.25 in (31.8 mm)
Open Pressure (Lbs.)242
Installed Pressure (Lbs.)101
QuantitySold as a set of 16
Installed Height1.65 in (41.91 mm)
Valve Spring StyleOvate wire
Outside Diameter Of Outer Spring1.494 in (37.9 mm)
Inside Diameter Of Outer Spring1.08 in (27.432 mm)
Inside Diameter1.04 in (26.416 mm)
Spring TypeSingle
Spring Rate (Lbs./In.)353
Outside Diameter1.494 in (37.9 mm)
Number Of Springs Per ValveSingle
Camshaft TypeHydraulic
Vendor Part Number901-16
Package Qty1
Package TypeEA
