Product Discontinued
Currently Unavailable
This product is no longer available. Please call customer service for assistance at 1-800-345-4545.

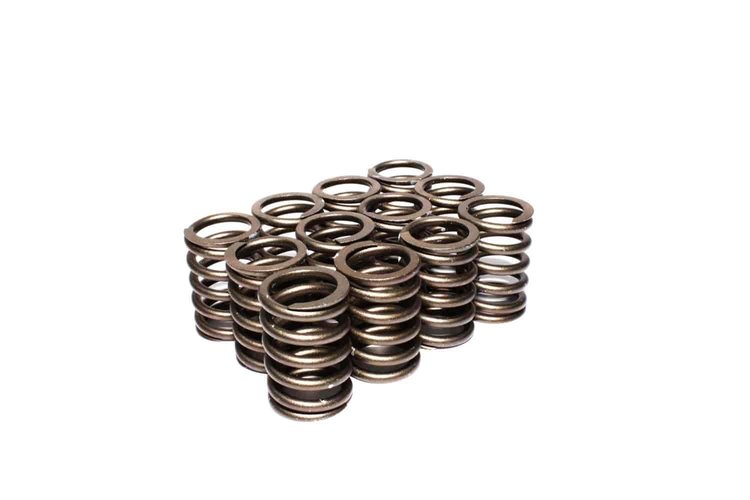

Outer
- Single Outer Valve Springs
- Rate: 280 lbs
- 1.000'' ID, 1.355'' OD
- Seat Load: 48 lbs at 1.600''
- Open Load: 146 lbs at 1.250''
- Coil Bind Height: 1.125''
- No Damper
- 12/pkg
Part TypeValve Spring Kit
BrandCOMP CAMS
Package Height3.0
Package Width3.8
Package Length13.7
Weight2.05 PG
Part CategoryPerformance Parts
CoatedNo
Coil Bind Height1.125 in (28.575 mm)
Damper Spring IncludedNo
Spring Rate280 lbs./in.
PositionOuter
Open Height1.25 in (31.8 mm)
Open Pressure (Lbs.)148
Installed Pressure (Lbs.)48
QuantitySold as a set of 12
Installed Height1.6 in (40.64 mm)
Valve Spring StyleStandard
Outside Diameter Of Outer Spring1.355 in (34.4 mm)
Inside Diameter Of Outer Spring1 in (25.4 mm)
Inside Diameter1 in (25.4 mm)
Spring TypeSingle
Spring Rate (Lbs./In.)280
Outside Diameter1.355 in (34.4 mm)
Number Of Springs Per ValveSingle
Camshaft TypeHydraulic
Vendor Part Number902-12
Package Qty1
Package TypeEA
