Product Discontinued
Currently Unavailable
This product is no longer available. Please call customer service for assistance at 1-800-345-4545.

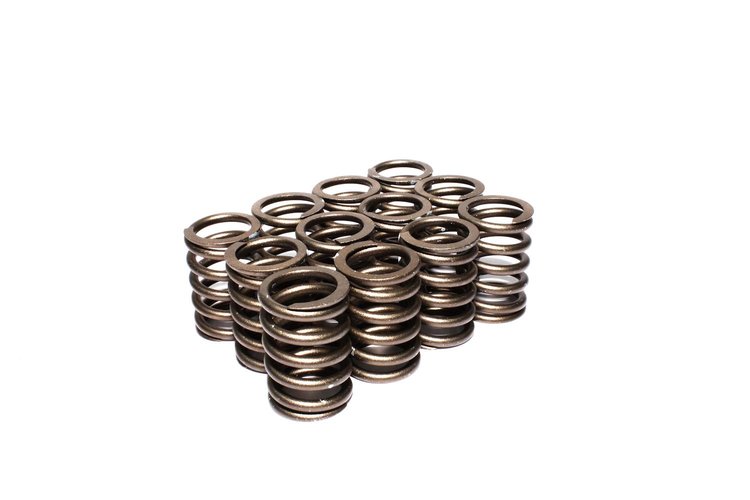

Outer
- Single Outer Valve Springs
- Rate: 240 lbs
- .835'' ID, 1.159'' OD
- Seat Load: 75 lbs at 1.550''
- Open Load: 195 lbs at 1.050''
- Coil Bind Height: .917''
- No Damper
- 16/pkg
Valve Springs; Dual Valve Springs; Single Valve Springs; Beehive Springs; Conical Springs; Valve Lift; Max Lift; Spring Kit
Engine Valve Spring
Part TypeValve Spring Kit
BrandCOMP CAMS
Package Height2.25
Package Width3.0
Package Length10.25
Weight3.37 PG
Part CategoryPerformance Parts
CoatedNo
Coil Bind Height0.917 in (23.292 mm)
Damper Spring IncludedNo
Spring Rate228 lbs./in.
PositionOuter
Open Height1.05 in (26.7 mm)
Open Pressure (Lbs.)195
Installed Pressure (Lbs.)75
QuantitySold as a set of 16
Installed Height1.55 in (39.37 mm)
Valve Spring StyleStandard
Outside Diameter Of Outer Spring1.159 in (29.4 mm)
Inside Diameter Of Outer Spring0.835 in (21.209 mm)
Inside Diameter0.835 in (21.209 mm)
Spring TypeSingle
Spring Rate (Lbs./In.)240
Part FitmentSemi Universal
Outside Diameter1.159 in (29.4 mm)
Number Of Springs Per ValveSingle
Camshaft TypeOEM
Vendor Part Number909-16
Package Qty1
Package TypeEA
