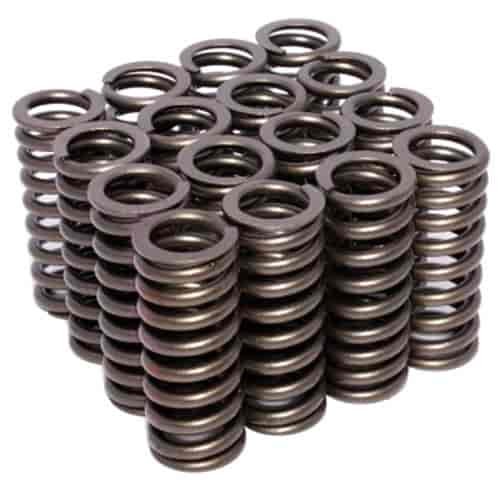

Vehicle Info NeededCOMP CAMSPART NUMBER: 249-912-16
Single Outer Valve Springs Rate: 240 lbs
$19799
Ships on 09/09/2026
Lowest Price GuaranteeOuter
- Single Outer Valve Springs
- Rate: 240 lbs
- .600'' ID, .896'' OD
- Seat Load: 50 lbs at 1.950''
- Open Load: 170 lbs at 1.450''
- Coil Bind Height: 1.360''
- No Damper
- 16/pkg
Valve Springs; Dual Valve Springs; Single Valve Springs; Beehive Springs; Conical Springs; Valve Lift; Max Lift; Spring Kit
Engine Valve Spring Kit
- Comp Cams Valve Springs are tested under stresses much greater than normal to ensure consistency. Isolating an engine's purpose is first when selecting proper springs. Verify load capacity for optimal performance.
Part TypeValve Spring Kit
Product LineComp Cams Single Valve Springs
BrandCOMP CAMS
Package Height2.4
Package Width3.0
Package Length10.4
Weight1.95 PG
Part CategoryPerformance Parts
CoatedNo
Coil Bind Height1.36 in (34.544 mm)
Damper Spring IncludedNo
Spring Rate240 lbs./in.
PositionOuter
Open Height1.25 in (31.8 mm)
Open Pressure (Lbs.)170
Installed Pressure (Lbs.)50
QuantitySold as a set of 16
Installed Height1.9 in (48.26 mm)
Valve Spring StyleStandard
Outside Diameter Of Outer Spring0.896 in (22.8 mm)
Inside Diameter Of Outer Spring0.6 in (15.24 mm)
Inside Diameter0.6 in (15.24 mm)
Spring TypeSingle
Spring Rate (Lbs./In.)240
Part FitmentSemi Universal
Outside Diameter0.896 in (22.8 mm)
Number Of Springs Per ValveSingle
Camshaft TypeOEM
Vendor Part Number912-16
Package Qty1
Package TypeEA
