Vehicle Info NeededCOMP CAMSPART NUMBER: 249-916-16

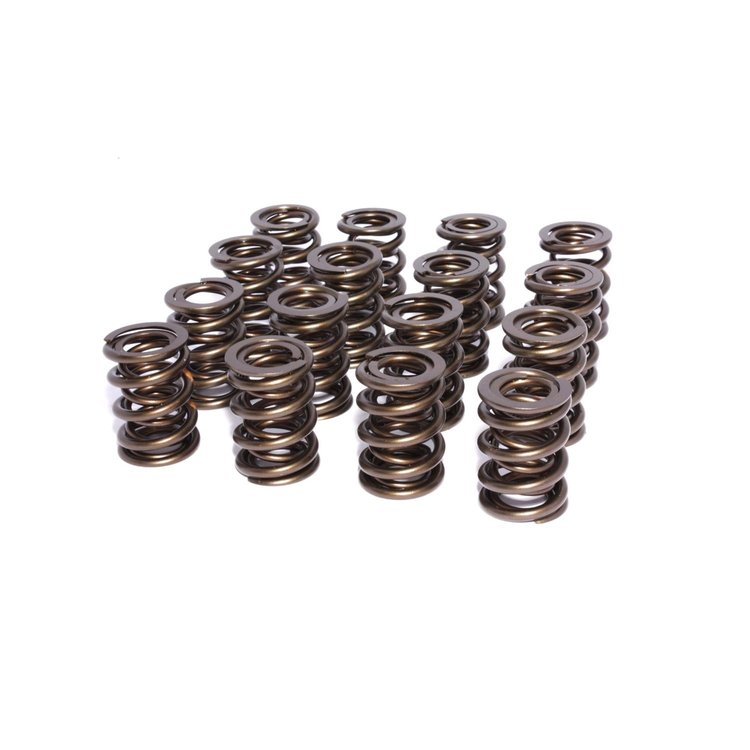

Dual Valve Springs Outer Spring O.D.: 1.567 in.
$19395
Ships Tomorrow
Lowest Price Guarantee1.567 in. Outside Diameter
- Dual Valve Springs
- Outer Spring O.D.: 1.567 in.
- Outer Spring I.D.: 1.166 in.
- Inner Spring I.D.: 0.896 in.
- Seat Load: 200lbs
- Coil Bind: 0.900 in.
- Spring Rate: 392lbs/in.
- Without damper
- Set of 16
- Dual Valve Spring
- Coiled On the Most Advanced CNC Machines
- 1 Year Limited Warranty
Valve Springs; Dual Valve Springs; Single Valve Springs; Beehive Springs; Conical Springs; Valve Lift; Max Lift; Spring Kit
Engine Valve Spring Kit
Part TypeValve Spring Kit
BrandCOMP CAMS
Package Height2.12
Package Width8.5
Package Length13.75
Weight4.1 PG
Part CategoryPerformance Parts
CoatedNo
Coil Bind Height0.9 in (22.86 mm)
Damper Spring IncludedNo
Spring Rate392 lbs./in.
PositionN/A
Open Height1 in (25.4 mm)
Open Pressure (Lbs.)474
Installed Pressure (Lbs.)200
QuantitySold as a set of 16
Installed Height1.7 in (43.18 mm)
Inside Diameter Of Inner Spring0.896 in (22.758 mm)
Valve Spring StyleStandard
Outside Diameter Of Outer Spring1.56 in (39.6 mm)
Inside Diameter Of Outer Spring1.166 in (29.616 mm)
Inside Diameter0.896 in (22.758 mm)
Spring TypeDouble
Spring Rate (Lbs./In.)392
Part FitmentSemi Universal
Outside Diameter1.554 in (39.5 mm)
Number Of Springs Per ValveDual
Camshaft TypeHydraulic
Vendor Part Number916-16
Package Qty1
Package TypeEA
