Vehicle Info NeededCOMP CAMSPART NUMBER: 249-917-16

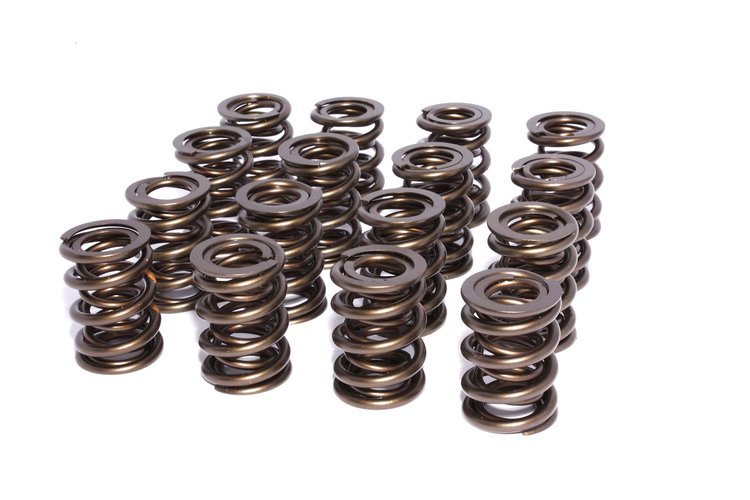

Dual Valve Springs Outer Spring O.D.: 1.565 in.
$20195
Ships Tomorrow
Lowest Price Guarantee1.565 in. Outside Diameter
- Dual Valve Springs
- Outer Spring O.D.: 1.565 in.
- Outer Spring I.D.: 1.136 in.
- Inner Spring I.D.: 0.824 in.
- Seat Load: 200lbs
- Coil Bind: 1.050 in.
- Spring Rate: 566lbs/in.
- Without damper
- Set of 16
- Dual Valve Spring
- Coiled On the Most Advanced CNC Machines
- 1 Year Limited Warranty
Valve Springs; Dual Valve Springs; Single Valve Springs; Beehive Springs; Conical Springs; Valve Lift; Max Lift; Spring Kit
Engine Valve Spring Kit
Part TypeValve Spring Kit
BrandCOMP CAMS
Package Height3.0
Package Width3.7
Package Length13.6
Weight4.97 PG
Part CategoryPerformance Parts
CoatedNo
Coil Bind Height1.05 in (26.67 mm)
Damper Spring IncludedNo
Spring Rate566 lbs./in.
PositionN/A
Open Height1.1 in (27.9 mm)
Open Pressure (Lbs.)596
Installed Pressure (Lbs.)200
QuantitySold as a set of 16
Installed Height1.8 in (45.72 mm)
Inside Diameter Of Inner Spring0.824 in (20.93 mm)
Valve Spring StyleStandard
Outside Diameter Of Outer Spring1.55 in (39.4 mm)
Inside Diameter Of Outer Spring1.136 in (28.854 mm)
Inside Diameter0.815 in (20.701 mm)
Spring TypeDouble
Spring Rate (Lbs./In.)566
Part FitmentSemi Universal
Outside Diameter1.55 in (39.4 mm)
Number Of Springs Per ValveDual
Camshaft TypeHydraulic
Vendor Part Number917-16
Package Qty1
Package TypeEA
