Product Discontinued
Currently Unavailable
This product is no longer available. Please call customer service for assistance at 1-800-345-4545.

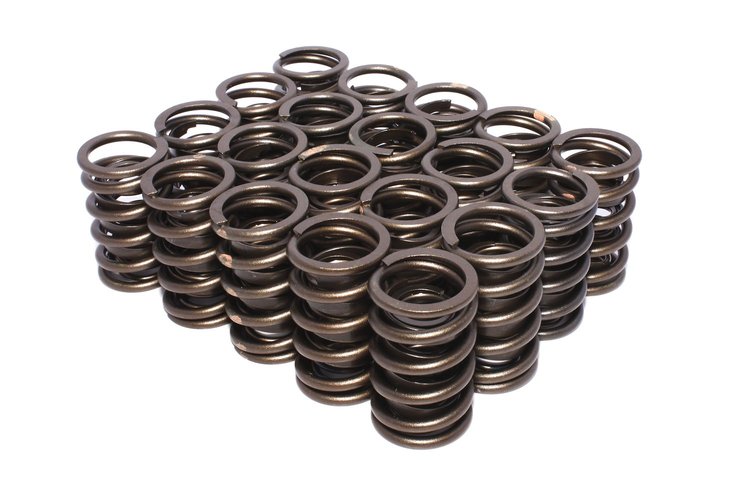

1.509 in. Outside Diameter
- Dual Valve Springs
- Outer Spring O.D.: 1.509 in.
- Outer Spring I.D.: 1.125 in.
- Inner Spring I.D.: 0.697 in.
- Seat Load: 112lbs
- Coil Bind: 1.175 in.
- Spring Rate: 347lbs/in.
- With damper
- Set of 20
- Dual Valve Spring
- Coiled On the Most Advanced CNC Machines
- 1 Year Limited Warranty
Valve Springs; Dual Valve Springs; Single Valve Springs; Beehive Springs; Conical Springs; Valve Lift; Max Lift; Spring Kit
Part TypeValve Spring Kit
BrandCOMP CAMS
Package Height2.7
Package Width6.5
Package Length11.9
Weight6.15 PG
Part CategoryPerformance Parts
CoatedNo
Coil Bind Height1.2 in (30.48 mm)
Damper Spring IncludedYes
Spring Rate347 lbs./in.
PositionN/A
Open Height1.28 in (32.5 mm)
Open Pressure (Lbs.)315
Installed Pressure (Lbs.)125
QuantitySold as a set of 20
Installed Height1.88 in (47.752 mm)
Inside Diameter Of Inner Spring0.697 in (17.704 mm)
Valve Spring StyleStandard
Outside Diameter Of Outer Spring1.509 in (38.3 mm)
Inside Diameter Of Outer Spring1.125 in (28.575 mm)
Inside Diameter0.697 in (17.704 mm)
Spring TypeDouble
Spring Rate (Lbs./In.)317
Outside Diameter1.509 in (38.3 mm)
Number Of Springs Per ValveDual
Camshaft TypeHydraulic
Vendor Part Number924-20
Package Qty1
Package TypeEA
