Product Discontinued
Currently Unavailable
This product is no longer available. Please call customer service for assistance at 1-800-345-4545.

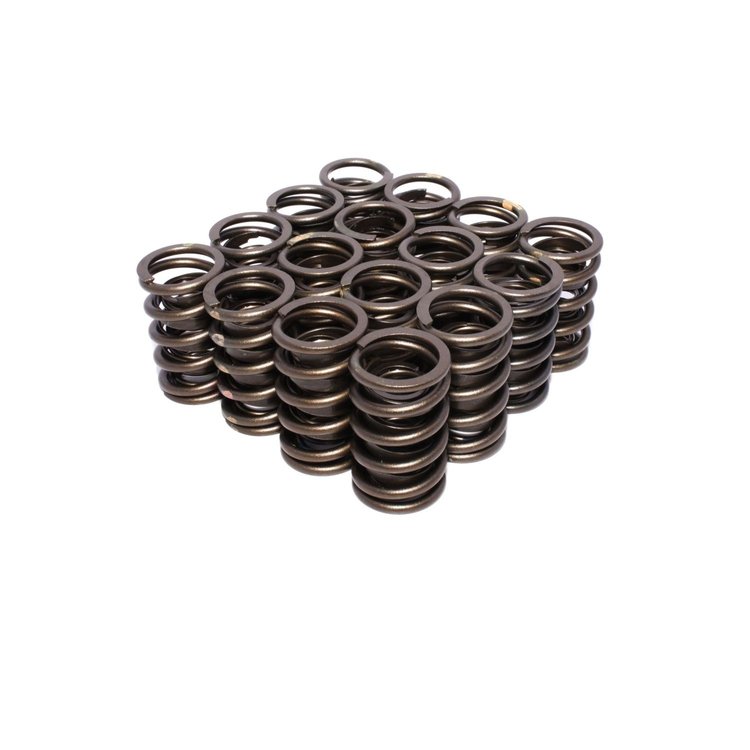

1.509 in. Outside Diameter
- Dual Valve Springs
- Outer Spring O.D.: 1.509 in.
- Outer Spring I.D.: 1.125 in.
- Inner Spring I.D.: 0.697 in.
- Seat Load: 111lbs
- Coil Bind: 1.175 in.
- Spring Rate: 395lbs/in.
- With damper
- Set of 16
- Hi-Tech Oval Track
- Dyno And Track Testing
- 1 Year Limited Warranty
Valve Springs; Dual Valve Springs; Single Valve Springs; Beehive Springs; Conical Springs; Valve Lift; Max Lift; Spring Kit
Engine Valve Spring Kit
Part TypeValve Spring Kit
BrandCOMP CAMS
Package Height2.9
Package Width13.9
Package Length14.3
Weight5.25 PG
Part CategoryPerformance Parts
CoatedNo
Coil Bind Height1.1 in (27.94 mm)
Damper Spring IncludedYes
Spring Rate395 lbs./in.
PositionN/A
Open Height1.35 in (34.3 mm)
Open Pressure (Lbs.)340
Installed Pressure (Lbs.)142
QuantitySold as a set of 16
Installed Height1.85 in (46.99 mm)
Inside Diameter Of Inner Spring0.697 in (17.704 mm)
Valve Spring StyleStandard
Outside Diameter Of Outer Spring1.509 in (38.3 mm)
Inside Diameter Of Outer Spring1.125 in (28.575 mm)
Inside Diameter0.697 in (17.704 mm)
Spring TypeDouble
Spring Rate (Lbs./In.)395
Outside Diameter1.51 in (38.4 mm)
Number Of Springs Per ValveDual
Camshaft TypeHydraulic
Vendor Part Number925-16
Package Qty1
Package TypeEA
