Vehicle Info NeededCOMP CAMSPART NUMBER: 249-926-12

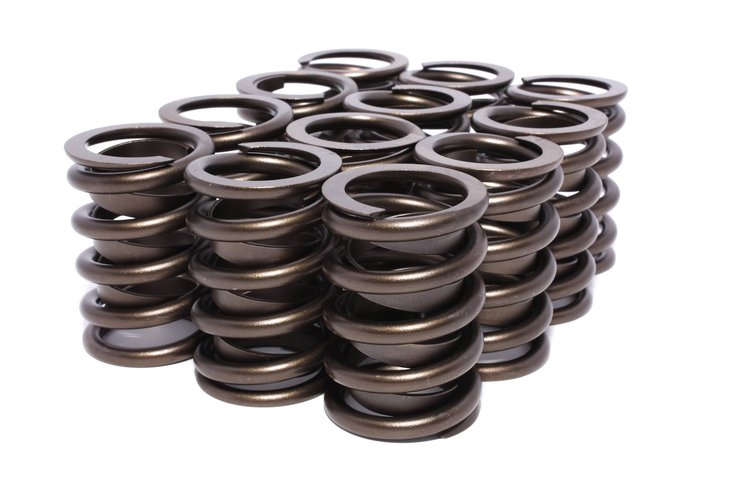

Single Outer Valve Springs Rate: 415 lbs
$8595
Ships on Sep 07, 2026
Lowest Price GuaranteeOuter
- Single Outer Valve Springs
- Rate: 415 lbs
- 1.062'' ID, 1.476'' OD
- Seat Load: 109 lbs at 1.800''
- Open Load: 317 lbs at 1.300''
- Coil Bind Height: 1.140''
- With Damper
- 12/pkg
Valve Springs; Dual Valve Springs; Single Valve Springs; Beehive Springs; Conical Springs; Valve Lift; Max Lift; Spring Kit
- Comp Cams Valve Springs are tested under stresses much greater than normal to ensure consistency. Isolating an engine's purpose is first when selecting proper springs. Verify load capacity for optimal performance.
Part TypeValve Spring Kit
Product LineComp Cams Single Valve Springs
BrandCOMP CAMS
Package Height3.8
Package Width4.0
Package Length12.8
Weight3.35 PG
Part CategoryPerformance Parts
CoatedNo
Coil Bind Height1.14 in (28.956 mm)
Damper Spring IncludedYes
Spring Rate415 lbs./in.
PositionOuter
Open Height1.3 in (33 mm)
Open Pressure (Lbs.)317
Installed Pressure (Lbs.)108
QuantitySold as a set of 12
Installed Height1.8 in (45.72 mm)
Valve Spring StyleStandard
Outside Diameter Of Outer Spring1.475 in (37.5 mm)
Inside Diameter Of Outer Spring1.062 in (26.975 mm)
Inside Diameter1.062 in (26.975 mm)
Spring TypeSingle
Spring Rate (Lbs./In.)418
Outside Diameter1.475 in (37.5 mm)
Number Of Springs Per ValveSingle
Camshaft TypeHydraulic
Vendor Part Number926-12
Package Qty1
Package TypeEA
