Product Discontinued
Currently Unavailable
This product is no longer available. Please call customer service for assistance at 1-800-345-4545.

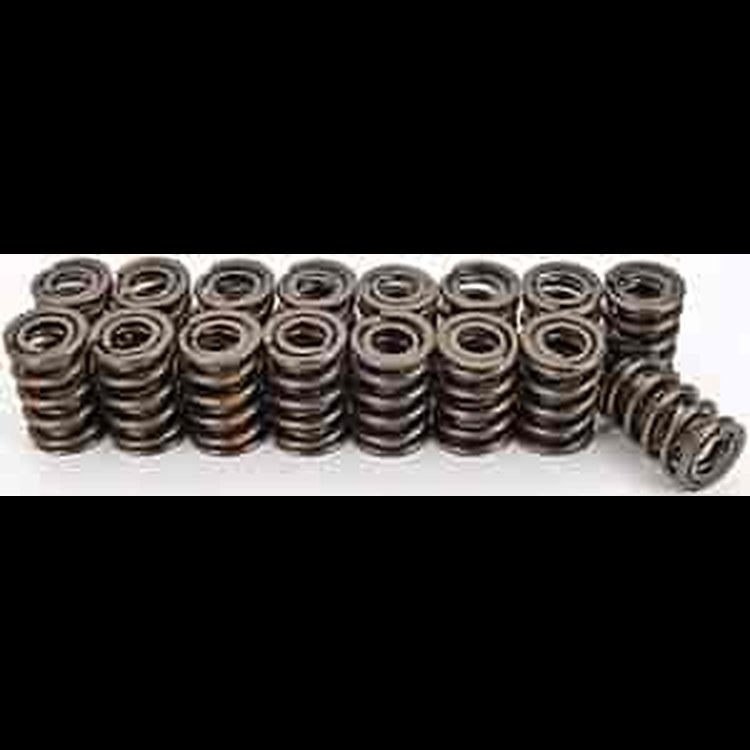

1.553 in. Outside Diameter
- Dual Valve Springs
- Outer Spring O.D.: 1.553 in.
- Outer Spring I.D.: 1.140 in.
- Inner Spring I.D.: 0.740 in.
- Seat Load: 158lbs
- Coil Bind: 1.160 in.
- Spring Rate: 439lbs/in.
- With damper
- Set of 16
- Dual Valve Spring
- Coiled On the Most Advanced CNC Machines
- 1 Year Limited Warranty
Valve Springs; Dual Valve Springs; Single Valve Springs; Beehive Springs; Conical Springs; Valve Lift; Max Lift; Spring Kit
Engine Valve Spring Kit
Part TypeValve Spring Kit
BrandCOMP CAMS
Package Height2.8
Package Width3.7
Package Length13.5
Weight5.85 PG
Part CategoryPerformance Parts
CoatedNo
Coil Bind Height1.18 in (29.972 mm)
Damper Spring IncludedYes
Spring Rate437 lbs./in.
PositionN/A
Open Height1.23 in (31.2 mm)
Open Pressure (Lbs.)434
Installed Pressure (Lbs.)150
QuantitySold as a set of 16
Installed Height1.88 in (47.752 mm)
Inside Diameter Of Inner Spring0.755 in (19.177 mm)
Valve Spring StyleStandard
Outside Diameter Of Outer Spring1.535 in (39 mm)
Inside Diameter Of Outer Spring1.14 in (28.956 mm)
Inside Diameter0.755 in (19.177 mm)
Spring TypeDouble
Spring Rate (Lbs./In.)437
Part FitmentSemi Universal
Outside Diameter1.535 in (39 mm)
Number Of Springs Per ValveDual
Camshaft TypeHydraulic
Vendor Part Number929-16
Package Qty1
Package TypeEA
