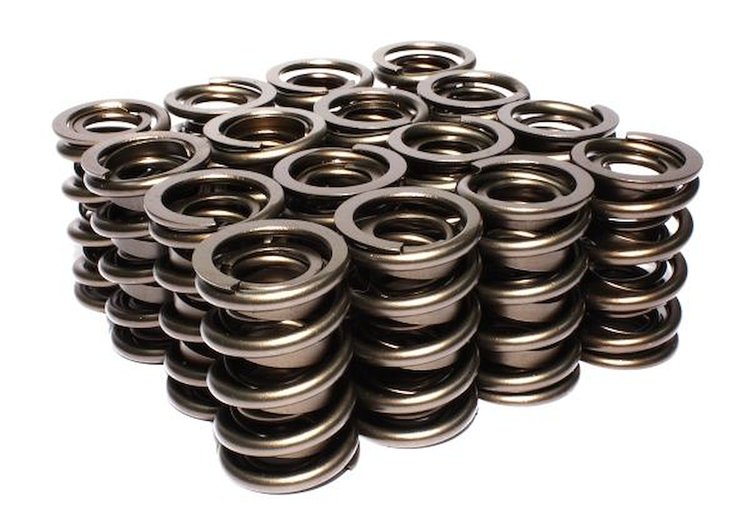

Dual Valve Springs Outer Spring O.D.: 1.554 in.
Product Discontinued
COMP CAMSPART NUMBER: 249-935-16

Dual Valve Springs Outer Spring O.D.: 1.554 in.

Currently Unavailable

This product is no longer available. Please call customer service for assistance at 1-800-345-4545.

1.554 in. Outside Diameter
    Dual Valve Springs
  • Outer Spring O.D.: 1.554 in.
  • Outer Spring I.D.: 1.140 in.
  • Inner Spring I.D.: 0.746 in.
  • Seat Load: 194lbs
  • Coil Bind: 1.180 in.
  • Spring Rate: 471lbs/in.
  • With damper
  • Set of 16

  • Hi-Tech Oval Track
  • Dyno And Track Testing
  • 1 Year Limited Warranty

    Valve Springs; Dual Valve Springs; Single Valve Springs; Beehive Springs; Conical Springs; Valve Lift; Max Lift; Spring Kit

Comp Cams Dual Valve Springs are manufactured from Super Clean wire and undergo extensive quality control that delivers a valve spring assembly with superior strength, durability and valve train stability, suitable for any application. The dual spring design creates a stronger valve spring that can easily handle increased lift found in extreme stress applications. Comp Cams Dual Valve Springs are a top choice for today’s engine builders and racers.

Features:

  • Superior strength, durability and valve train stability
  • Easily handles increased lift
  • Suitable for street or race applications
Part TypeValve Spring Kit
Product LineComp Cams Dual Valve Springs
BrandCOMP CAMS
Package Height3.0
Package Width3.8
Package Length13.6
Weight6.0 PG
Part CategoryPerformance Parts
CoatedNo
Coil Bind Height1.18 in (29.972 mm)
Damper Spring IncludedYes
Spring Rate467 lbs./in.
PositionN/A
Open Height1.25 in (31.8 mm)
Open Pressure (Lbs.)524
Installed Pressure (Lbs.)194
QuantitySold as a set of 16
Installed Height1.95 in (49.53 mm)
Inside Diameter Of Inner Spring0.746 in (18.948 mm)
Valve Spring StyleStandard
Outside Diameter Of Outer Spring1.554 in (39.5 mm)
Inside Diameter Of Outer Spring1.14 in (28.956 mm)
Inside Diameter0.746 in (18.948 mm)
Spring TypeDouble
Spring Rate (Lbs./In.)471
Part FitmentSemi Universal
Outside Diameter1.554 in (39.5 mm)
Number Of Springs Per ValveDual
Camshaft TypeHydraulic
Vendor Part Number935-16
Package Qty1
Package TypeEA
