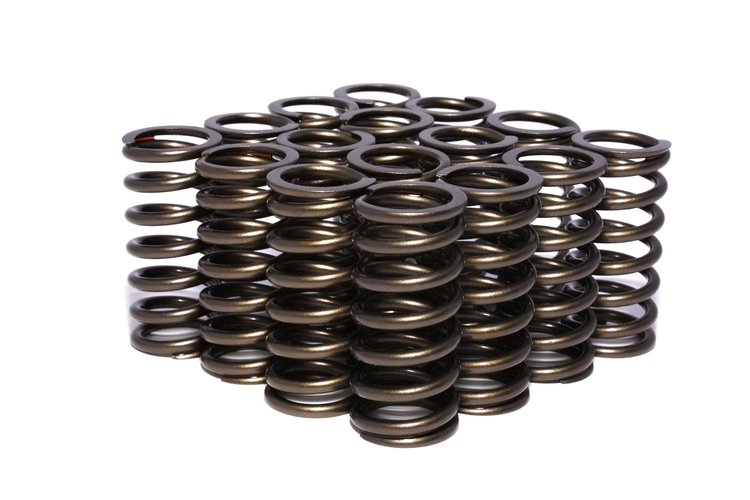

Vehicle Info NeededCOMP CAMSPART NUMBER: 249-937-16
Single Inner Valve Springs Rate: 156 lbs
$9695
Ships on 09/09/2026
Lowest Price GuaranteeInner
- Single Inner Valve Springs
- Rate: 156 lbs
- .731'' ID, 1.015'' OD
- Seat Load: 54 lbs at 1.800''
- Open Load: 147 lbs at 1.200''
- Coil Bind Height: 1.100''
- 16/pkg
Valve Springs; Dual Valve Springs; Single Valve Springs; Beehive Springs; Conical Springs; Valve Lift; Max Lift; Spring Kit
Engine Valve Spring Kit
Part TypeValve Spring Kit
BrandCOMP CAMS
Package Height2.4
Package Width3.0
Package Length10.4
Weight1.6 PG
Part CategoryPerformance Parts
CoatedNo
Coil Bind Height1.1 in (27.94 mm)
Damper Spring IncludedNo
Spring Rate156 lbs./in.
PositionInner
Open Height1.2 in (30.5 mm)
Open Pressure (Lbs.)145
Installed Pressure (Lbs.)52
QuantitySold as a set of 16
Installed Height1.8 in (45.72 mm)
Inside Diameter Of Inner Spring0.731 in (18.567 mm)
Valve Spring StyleStandard
Outside Diameter Of Outer Spring1.015 in (25.8 mm)
Inside Diameter0.731 in (18.567 mm)
Spring TypeSingle
Spring Rate (Lbs./In.)156
Part FitmentSemi Universal
Outside Diameter1.015 in (25.8 mm)
Number Of Springs Per ValveSingle (inner spring)
Camshaft TypeHydraulic
Vendor Part Number937-16
Package Qty1
Package TypeEA
