Vehicle Info NeededCOMP CAMSPART NUMBER: 249-941-12

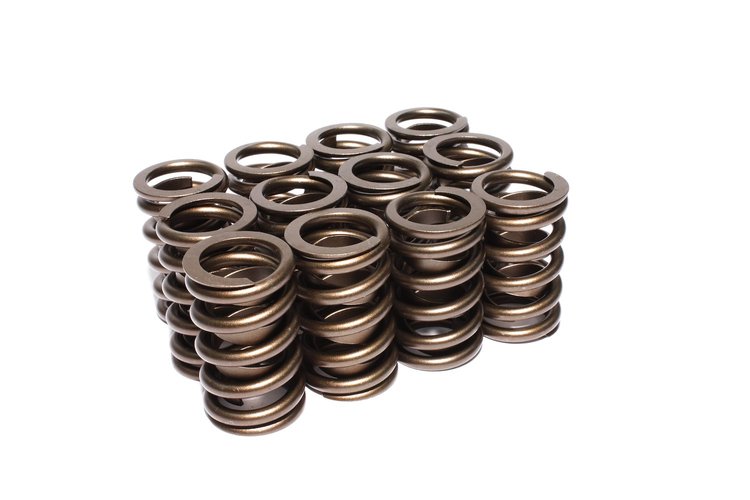

Chevy V6, 1.260" Outer Spring with Damper
$19295
Ships on 10/26/2026
Lowest Price GuaranteeChevy
- Chevy V6, 1.260'' Outer Spring with Damper
Spring O.D.: 1.260'
Seat Pressure: 135 lbs @ 1.750' Seat; 379 lbs @ 1.200' Open
Coil Bind: 1.130'
Rate (lbs/in): 443 lbs/in
Valve Springs; Dual Valve Springs; Single Valve Springs; Beehive Springs; Conical Springs; Valve Lift; Max Lift; Spring Kit
- The search for the ultimate stock car spring took hundreds of hours of dyno and track testing, and has resulted in these superior Comp Cams Hi-Tech Stock Car valve springs. Perfect for any type of oval track applications.
Part TypeValve Spring Kit
Product LineComp Cams Hi-Tech Endurance Valve Springs
BrandCOMP CAMS
Package Height2.12
Package Width8.5
Package Length13.75
Weight2.35 PG
Part CategoryPerformance Parts
CoatedNo
Coil Bind Height1.13 in (28.702 mm)
Damper Spring IncludedYes
Spring Rate441 lbs./in.
PositionOuter
Open Height1.25 in (31.8 mm)
Open Pressure (Lbs.)359
Installed Pressure (Lbs.)135
QuantitySold as a set of 12
Installed Height1.75 in (44.45 mm)
Valve Spring StyleStandard
Outside Diameter Of Outer Spring1.255 in (31.9 mm)
Inside Diameter Of Outer Spring0.871 in (22.123 mm)
Inside Diameter0.876 in (22.25 mm)
Spring TypeSingle
Spring Rate (Lbs./In.)447
Part FitmentSemi Universal
Outside Diameter1.26 in (32 mm)
Number Of Springs Per ValveSingle
Camshaft TypeHydraulic
Vendor Part Number941-12
Package Qty1
Package TypeEA
